IXXP12N65B4 - Extreme Light Punch Through IGBT

Advance Technical Information XPTTM 650V IGBT GenX4TM Extreme Light Punch Through IGBT for 5-30kHz Switching IXXP12N65B4 VCES = 650V IC110 = 12A V CE(sat)  1.95V tfi(typ) = 57ns TO-220 Symbol VCES VCGR VGES VGEM IC25 IC110 ICM SSOA (RBSOA) tsc (SCSOA) PC TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C, RGE = 1M Continuous Transient TC = 25°C TC = 110°C TC = 25°C, 1ms VGE = 15V, TVJ = 150°C, RG = 20 Clamped Inductive Load VGE = 15V, VCE = 360V

IXXP12N65B4 Features

* Optimized for 5-30kHz Switching

* Square RBSOA

* Short Circuit Capability

* International Standard Package Advantages

* High Power Density

* Extremely Rugged

* Low Gate Drive Requirement Applications

* Power Inverters

* UPS

* Motor Drives

* SMPS

* PF

IXXP12N65B4-IXYS.pdf

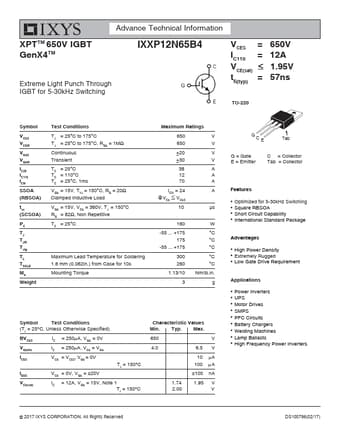

Preview of IXXP12N65B4 PDF
