M1022LC180, M1022LC120 Datasheet - IXYS

M1022LC180 Soft Recovery Diode

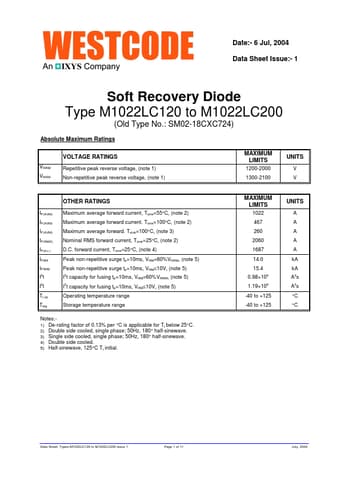

Date:- 6 Jul, 2004 Data Sheet Issue:- 1 Soft Recovery Diode Type M1022LC120 to M1022LC200 (Old Type No.: SM02-18CXC724) Absolute Maximum Ratings VRRM VRSM VOLTAGE RATINGS Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 1200-2000 1300-2100 UNITS V V IF(AVM) IF(AVM) IF(AVM) IF(RMS) IF(d.c.) IFSM IFSM2 I2t I2t Tj op Tstg OTHER RATINGS Maximum average forward current, Tsink=55°C, (note 2) Maximum average forward current. Tsink=100°C, (no.

M1022LC120-IXYS.pdf

This datasheet PDF includes multiple part numbers: M1022LC180, M1022LC120. Please refer to the document for exact specifications by model.
M1022LC180 Datasheet Preview Page 2 M1022LC180 Datasheet Preview Page 3

Datasheet Details

Part number:

M1022LC180, M1022LC120

Manufacturer:

IXYS

File Size:

370.99 KB

Description:

Soft recovery diode.

Note:

This datasheet PDF includes multiple part numbers: M1022LC180, M1022LC120.
Please refer to the document for exact specifications by model.
