MDD142-08N1, Standard Rectifier

Standard Rectifier Module Phase leg Part number MDD142-08N1 2 13 MDD142-08N1 VRRM I FAV VF = 2x 800 V = 165 A = 1.05 V Backside: isolated .

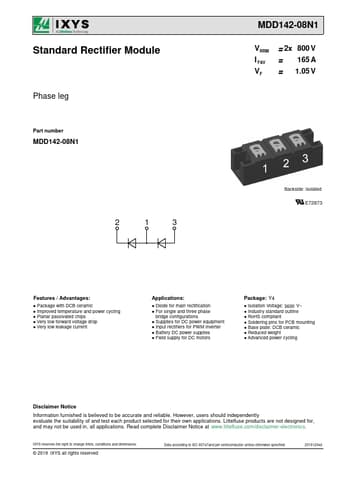

datasheet Preview Page 1 from Datasheet4u.com

MDD142-08N1-IXYS.pdf

MDD142-08N1 Datasheet Preview — Preview of MDD142-08N1 PDF

Datasheet Details

Part number:

MDD142-08N1

Manufacturer:

IXYS

File Size:

188.85 KB

Description:

Standard Rectifier

Features

* / Advantages:
* Package with DCB ceramic
* Improved temperature and power cycling
* Planar passivated chips
* Very low forward voltage drop

Applications

* Diode for main rectification
* For single and three phase bridge configurations
* Supplies for DC power equipment
* Input rectifiers for PWM inverter
* Battery DC power supplies
* Field supply for DC motors Package: Y4
* Isolation Voltage: 3600 V~
* Industry stand
