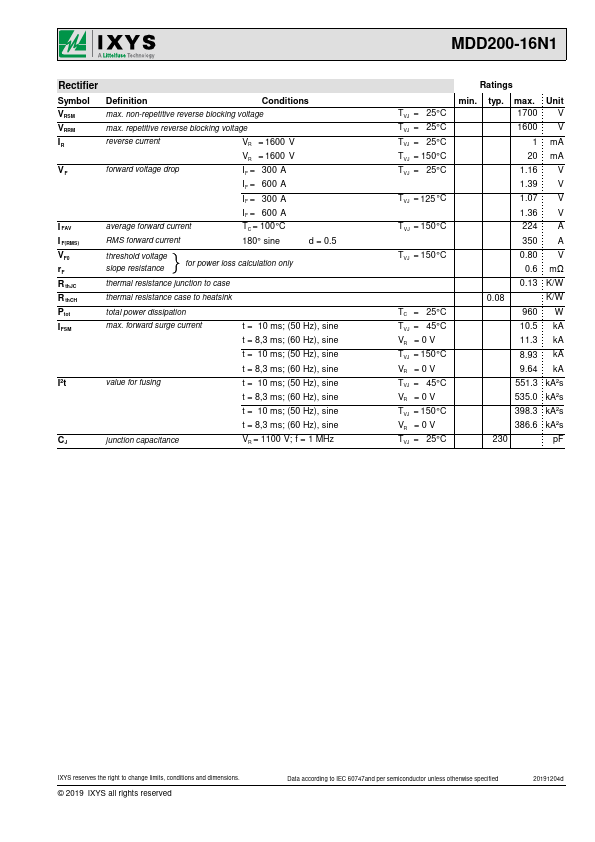

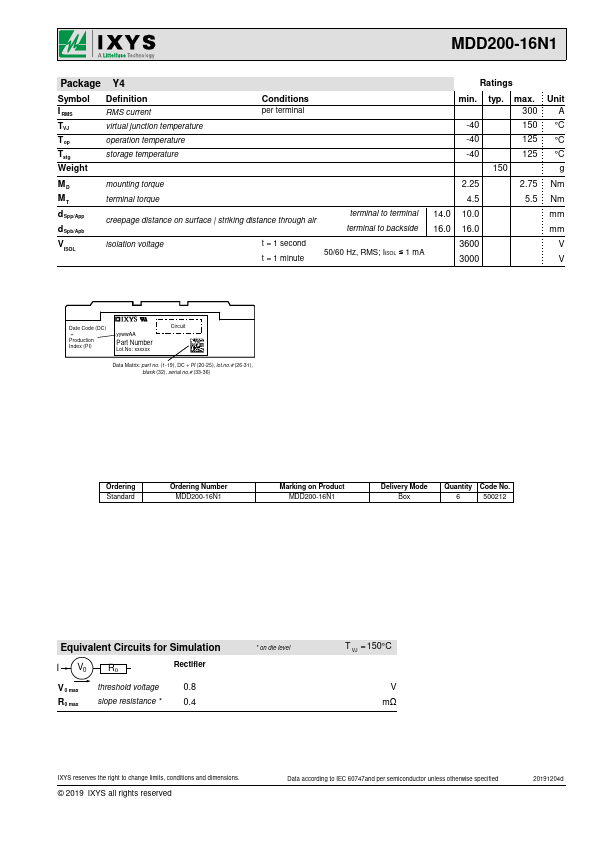

MDD200-16N1
IXYS
219.94kb
Standard rectifier.
TAGS
📁 Related Datasheet
MDD200-14N1 - Standard Rectifier
(IXYS)
Standard Rectifier Module
Phase leg
Part number
MDD200-14N1
2 13
MDD200-14N1
VRRM I FAV VF
= 2x 1400 V = 224 A = 1.07 V
Backside: isolated
Featur.
MDD200-18N1 - Standard Rectifier
(IXYS)
Standard Rectifier Module
Phase leg
Part number
MDD200-18N1
2 13
MDD200-18N1
VRRM I FAV VF
= 2x 1800 V = 224 A = 1.07 V
Backside: isolated
Featur.
MDD200-22N1 - Standard Rectifier
(IXYS)
High Voltage Standard Rectifier Module
Phase leg
MDD200-22N1
VRRM I FAV VF
= 2x 2200 V = 224 A = 1.07 V
Part number
MDD200-22N1
2 13
Backside: i.
MDD220 - HIgh Power Diode
(IXYS Corporation)
..
MDD 220
High Power Diode Modules
IFRMS = 2x450 A IFAVM = 2x270 A VRRM = 800-1800 V
3 1 2 2 1 3
VRSM V 900 1300 1500 1700 1900
.
MDD220-08N1 - HIgh Power Diode Modules
(IXYS Corporation)
..
MDD 220
High Power Diode Modules
IFRMS = 2x450 A IFAVM = 2x270 A VRRM = 800-1800 V
VRSM
V
900 1300 1500 1700 1900
VRRM
V
800 .
MDD220-12N1 - HIgh Power Diode Modules
(IXYS Corporation)
..
MDD 220
High Power Diode Modules
IFRMS = 2x450 A IFAVM = 2x270 A VRRM = 800-1800 V
VRSM
V
900 1300 1500 1700 1900
VRRM
V
800 .
MDD220-14N1 - HIgh Power Diode Modules
(IXYS Corporation)
..
MDD 220
High Power Diode Modules
IFRMS = 2x450 A IFAVM = 2x270 A VRRM = 800-1800 V
VRSM
V
900 1300 1500 1700 1900
VRRM
V
800 .
MDD220-16N1 - HIgh Power Diode Modules
(IXYS Corporation)
..
MDD 220
High Power Diode Modules
IFRMS = 2x450 A IFAVM = 2x270 A VRRM = 800-1800 V
VRSM
V
900 1300 1500 1700 1900
VRRM
V
800 .
MDD220-18N1 - HIgh Power Diode Modules
(IXYS Corporation)
..
MDD 220
High Power Diode Modules
IFRMS = 2x450 A IFAVM = 2x270 A VRRM = 800-1800 V
VRSM
V
900 1300 1500 1700 1900
VRRM
V
800 .
MDD250 - HIgh Power Diode
(IXYS Corporation)
..
MDD 250
High Power Diode Modules
IFRMS = 2x 450 A IFAVM = 2x 290 A VRRM = 800-1600 V
3
VRSM V 900 1300 1500 1700
VRRM V 800 1.
