MDD200-18N1 Standard Rectifier

IXYS

Description

Standard Rectifier Module Phase leg Part number MDD200-18N1 2 13 MDD200-18N1 VRRM I FAV VF = 2x 1800 V = 224 A = 1.07 V Backside: isolated Featur.

📥 Download Datasheet

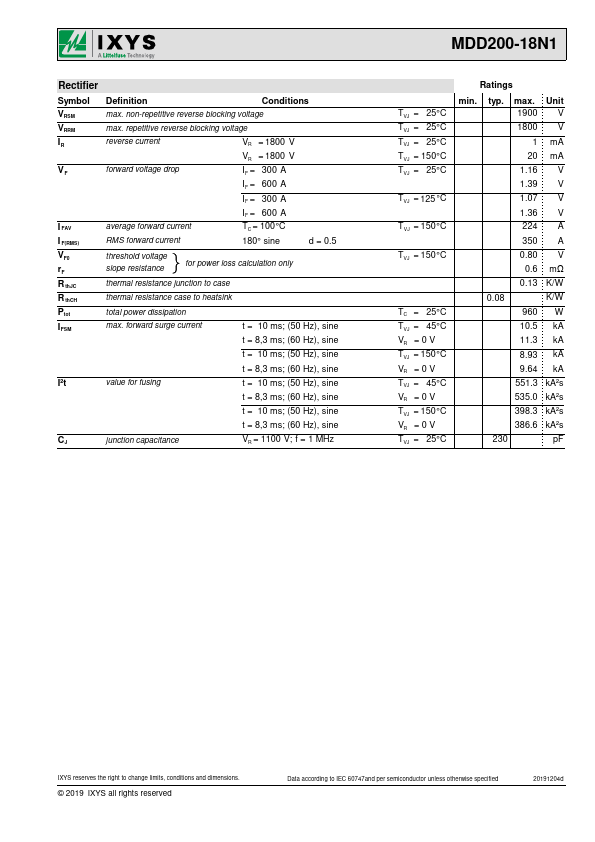

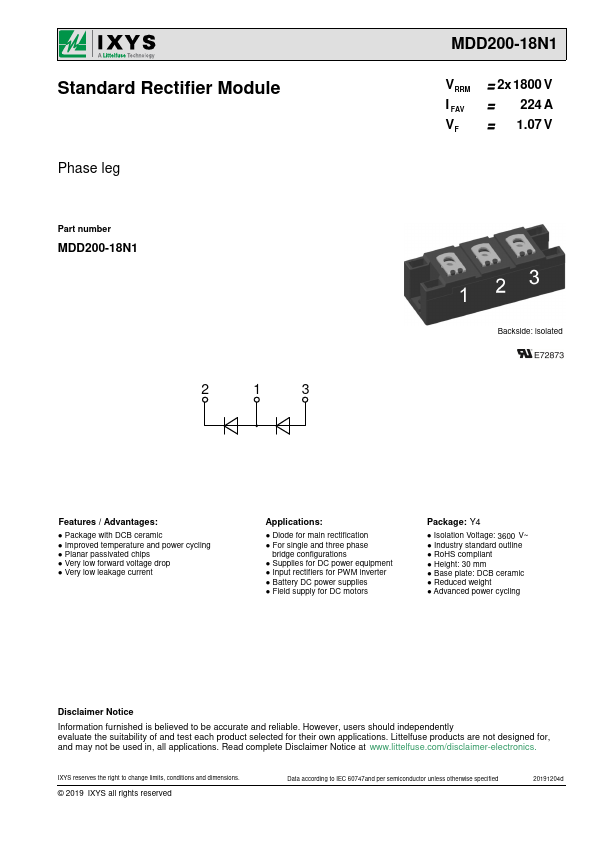

MDD200-18N1 Datasheet Preview — Preview of MDD200-18N1 PDF

Datasheet Specifications

Part number: MDD200-18N1
Manufacturer: IXYS
File Size: 219.96 KB
Datasheet: MDD200-18N1-IXYS.pdf
Description: Standard Rectifier

Features

* / Advantages:
* Package with DCB ceramic
* Improved temperature and power cycling
* Planar passivated chips
* Very low forward voltage drop

Applications

* Diode for main rectification
* For single and three phase bridge configurations
* Supplies for DC power equipment
* Input rectifiers for PWM inverter
* Battery DC power supplies
* Field supply for DC motors Package: Y4
* Isolation Voltage: 3600 V~
* Industry stand
