MDD312-14N1 Standard Rectifier Module

MDD312-14N1 Description

Standard Rectifier Module Phase leg Part number MDD312-14N1 2 1 3 MDD312-14N1 VRRM I FAV VF = 2x 1400 V = 310 A = 1,03 V Backside: isolated Fe.

MDD312-14N1 Features

* / Advantages:
* Package with DCB ceramic
* Improved temperature and power cycling
* Planar passivated chips
* Very low forward voltage drop

MDD312-14N1 Applications

* Diode for main rectification
* For single and three phase bridge configurations
* Supplies for DC power equipment
* Input rectifiers for PWM inverter
* Battery DC power supplies
* Field supply for DC motors Package: Y1
* Isolation Voltage: 4800 V~
* Industry stand

📥 Download Datasheet

Preview of MDD312-14N1 PDF

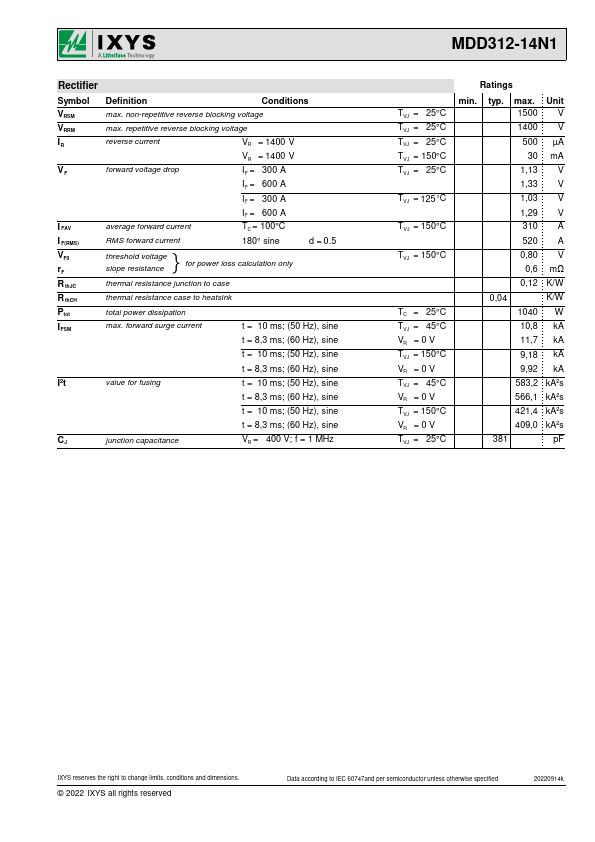

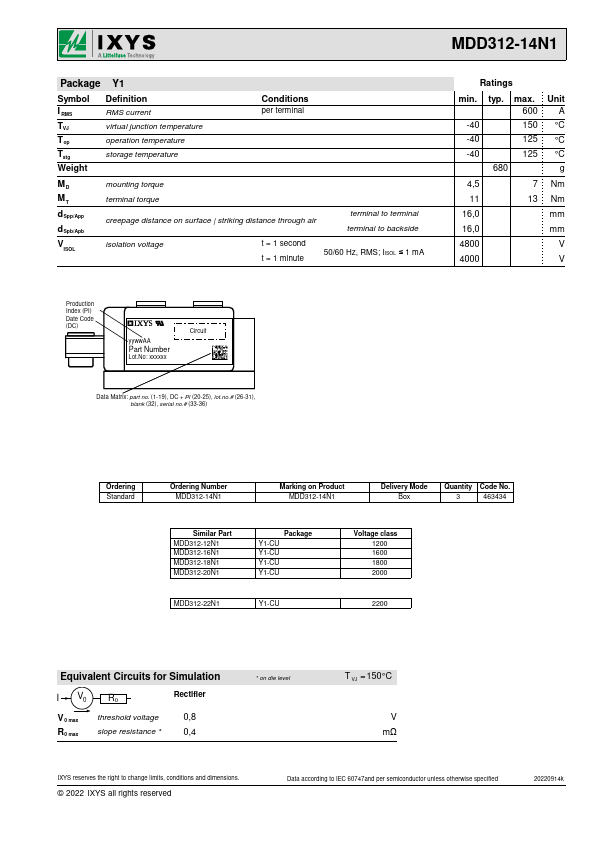

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MDD312-14N1
Manufacturer
IXYS
File Size
146.43 KB
Datasheet
MDD312-14N1_IXYSCorporation.pdf
Description
Standard Rectifier Module
