MDD44-08N1B Standard Rectifier

IXYS

MDD44-08N1B Description

Standard Rectifier Module Phase leg Part number MDD44-08N1B 2 1 3 MDD44-08N1B VRRM I FAV VF = 2x 800 V = 59 A = 1,26 V Backside: isolated Feat.

MDD44-08N1B Features

* / Advantages:
* Package with DCB ceramic
* Improved temperature and power cycling
* Planar passivated chips
* Very low forward voltage drop

MDD44-08N1B Applications

* Diode for main rectification
* For single and three phase bridge configurations
* Supplies for DC power equipment
* Input rectifiers for PWM inverter
* Battery DC power supplies
* Field supply for DC motors Package: TO-240AA
* Isolation Voltage: 4800 V~
* Industry

📥 Download Datasheet

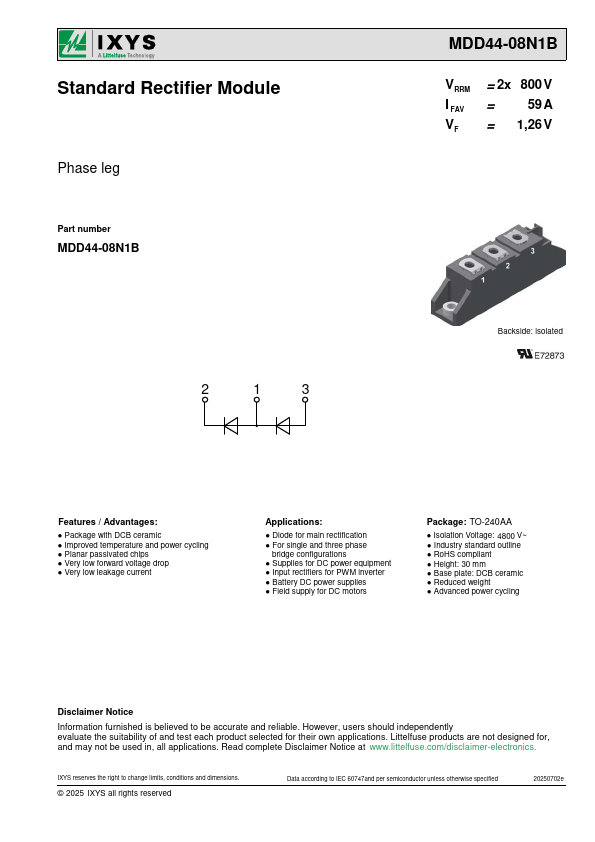

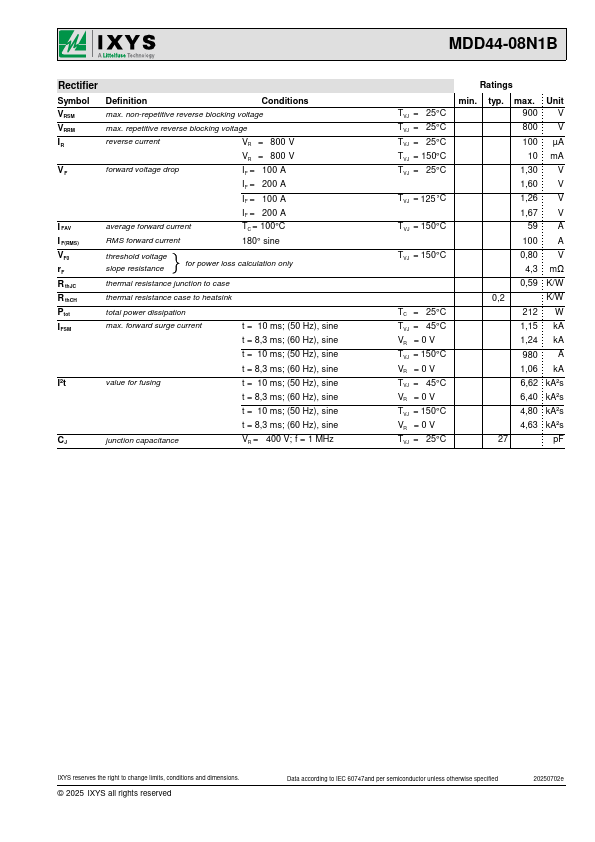

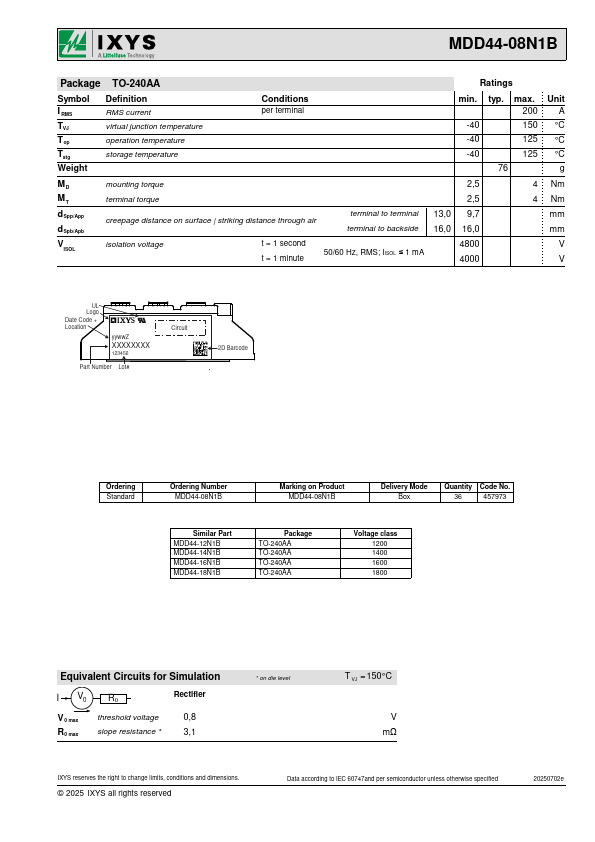

MDD44-08N1B Datasheet Preview — Preview of MDD44-08N1B PDF

Datasheet Details

Part number: MDD44-08N1B
Manufacturer: IXYS
File Size: 328.86 KB
Datasheet: MDD44-08N1B-IXYS.pdf
Description: Standard Rectifier
