MDD56-14N1B Standard Rectifier Module

IXYS

Description

Standard Rectifier Module Phase leg Part number MDD56-14N1B 2 1 3 MDD56-14N1B VRRM I FAV VF = 2x 1400 V = 71 A = 1.14 V Backside: isolated Fea.

📥 Download Datasheet

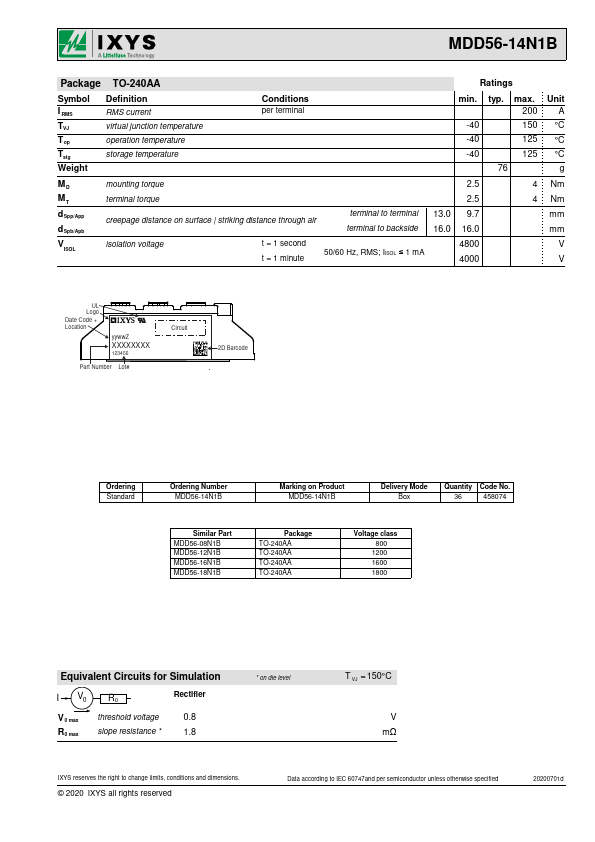

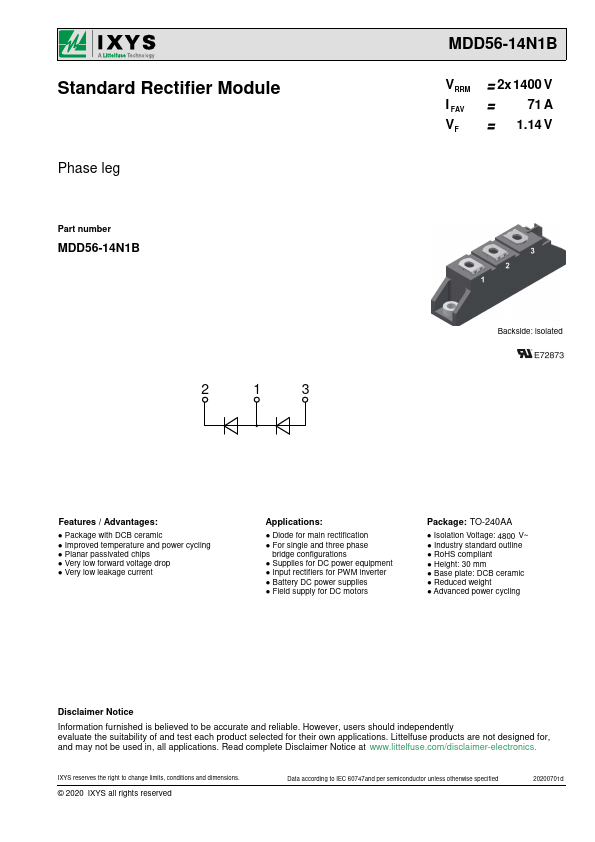

MDD56-14N1B Datasheet Preview — Preview of MDD56-14N1B PDF

Datasheet Specifications

Part number: MDD56-14N1B
Manufacturer: IXYS
File Size: 495.79 KB
Datasheet: MDD56-14N1B-IXYS.pdf
Description: Standard Rectifier Module

Features

* / Advantages:
* Package with DCB ceramic
* Improved temperature and power cycling
* Planar passivated chips
* Very low forward voltage drop

Applications

* Diode for main rectification
* For single and three phase bridge configurations
* Supplies for DC power equipment
* Input rectifiers for PWM inverter
* Battery DC power supplies
* Field supply for DC motors Package: TO-240AA
* Isolation Voltage: 4800 V~
* Industry
