MDMA140P1600TG - Standard Rectifier

MDMA140P1600TG Description

Standard Rectifier Module Phase leg Part number MDMA140P1600TG 2 1 3 MDMA140P1600TG VRRM I FAV VF = 2x 1600 V = 140 A = 1,11 V Backside: isolat.
M = Module D = Diode M = Standard Rectifier A = (up to 1800V) 140 = Current Rating [A] P = Phase leg 1600 = Reverse Voltage [V] TG = TO-240AA Orderin.

MDMA140P1600TG Features

* / Advantages:
* Package with DCB ceramic
* Improved temperature and power cycling
* Planar passivated chips
* Very low forward voltage drop

MDMA140P1600TG Applications

* Diode for main rectification
* For single and three phase bridge configurations
* Supplies for DC power equipment
* Input rectifiers for PWM inverter
* Battery DC power supplies
* Field supply for DC motors Package: TO-240AA
* Isolation Voltage: 4800 V~
* Industry

📥 Download Datasheet

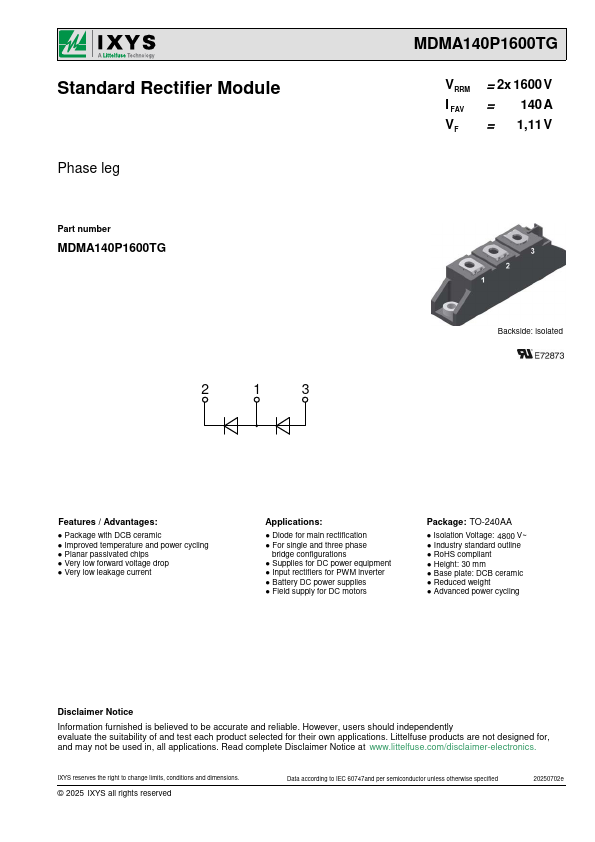

Preview of MDMA140P1600TG PDF

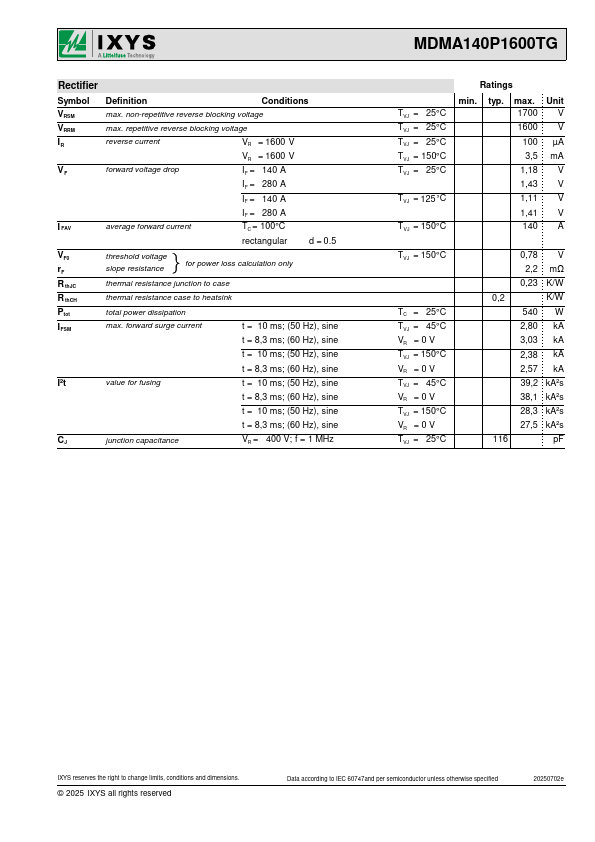

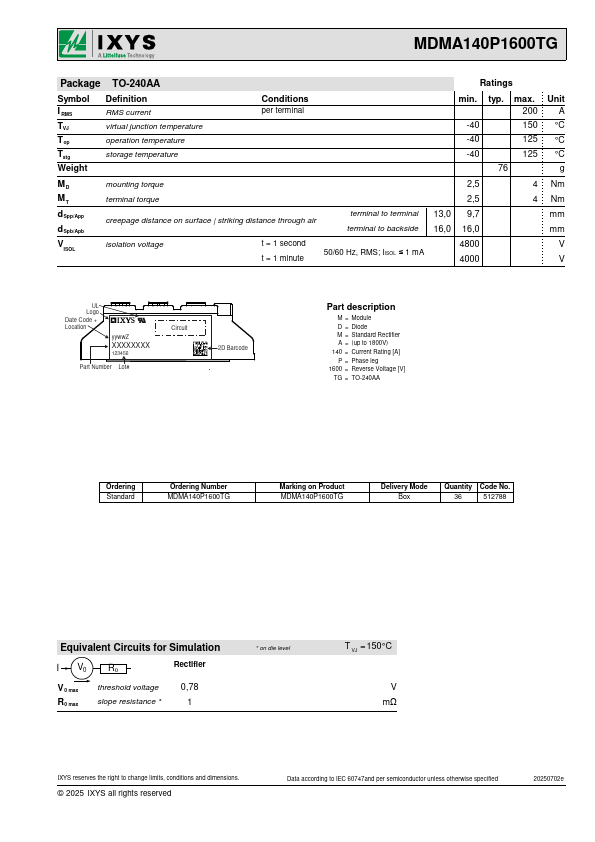

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MDMA140P1600TG
Manufacturer
IXYS
File Size
210.16 KB
Datasheet
MDMA140P1600TG-IXYS.pdf
Description
Standard Rectifier
