MDMA210P1600YD Datasheet - IXYS

Standard Rectifier Module

MDMA210P1600YD Features

* / Advantages:

* Package with DCB ceramic

* Improved temperature and power cycling

* Planar passivated chips

* Very low forward voltage drop

* Very low leakage current Applications:

* Diode for main rectification

* For single and three phase bridge configurations

* Su

MDMA210P1600YD General Description

M = Module D = Diode M = Standard Rectifier A = (up to 1800V) 210 = Current Rating [A] P = Phase leg 1600 = Reverse Voltage [V] YD = Y4-M6 Ordering Standard Ordering Number MDMA210P1600YD Marking on Product MDMA210P1600YD Delivery Mode Box Quantity Code No. 6 517762 Similar Part MDMA180P1600.

MDMA210P1600YD Datasheet (226.24 KB)

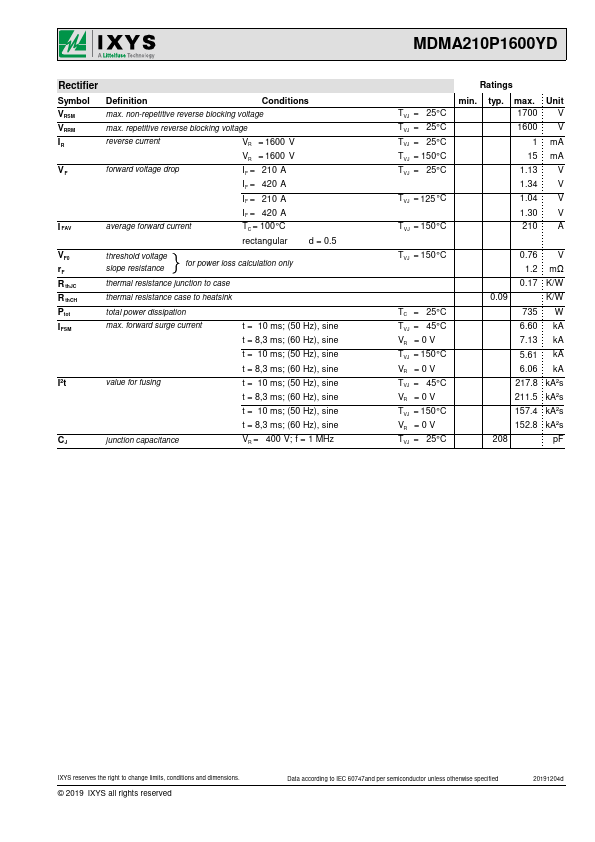

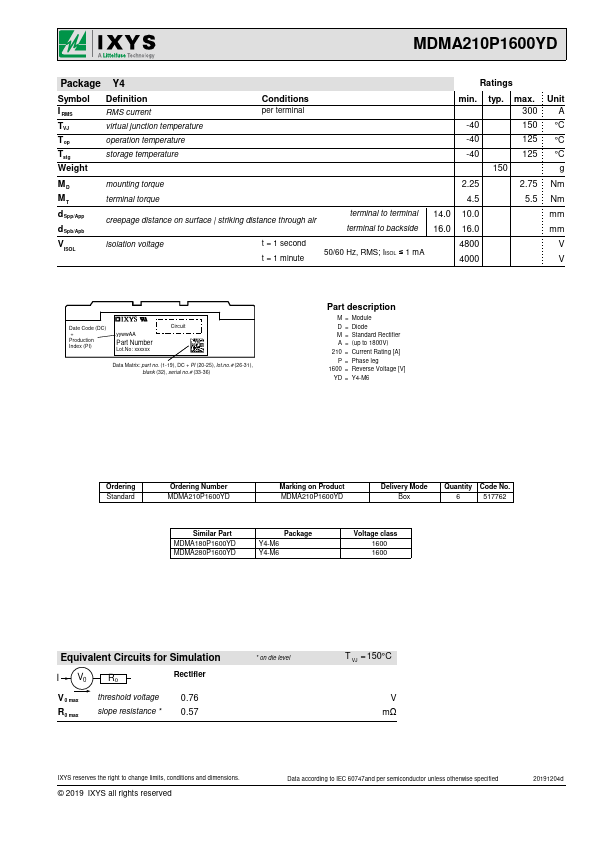

MDMA210P1600YD Datasheet Preview — Preview of MDMA210P1600YD PDF

Datasheet Details

Part number:

MDMA210P1600YD

Manufacturer:

IXYS

File Size:

226.24 KB

Description:

Standard rectifier module.

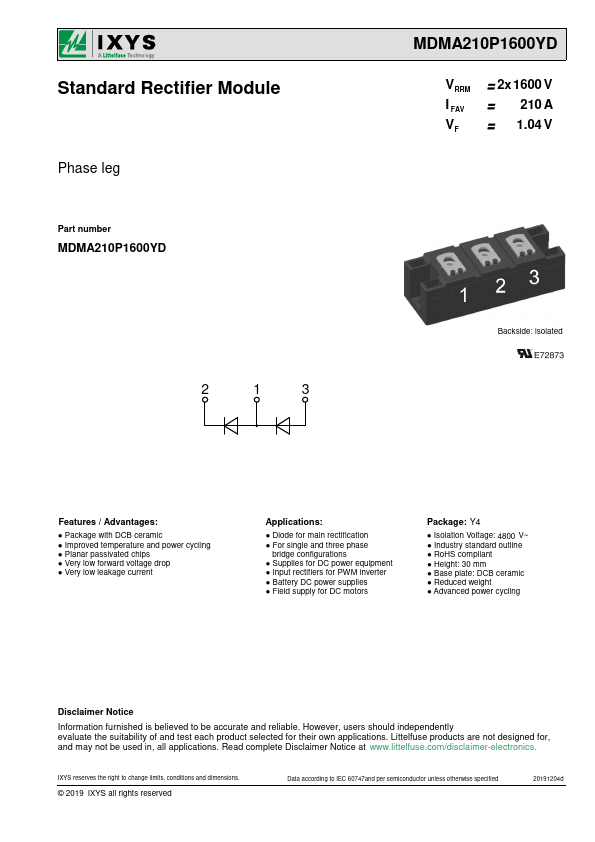

Standard Rectifier Module Phase leg Part number MDMA210P1600YD 2 1 3 MDMA210P1600YD VRRM I FAV VF = 2x 1600 V = 210 A = 1.04 V Backside: isolat.
