MDMA240UB1600ED - Standard Rectifier

MDMA240UB1600ED Description

Standard Rectifier Module 3~ Rectifier Bridge + Brake Unit Part number MDMA240UB1600ED MDMA240UB1600ED 3~ Rectifier Brake Chopper VRRM = I DAV = I.

MDMA240UB1600ED Features

* / Advantages:
* Package with DCB ceramic
* Improved temperature and power cycling
* Planar passivated chips
* Very low forward voltage drop
* Very low leakage current
* X2PT - 2nd generation Xtreme light Punch Through
* Rugged X2PT design results in: - short circuit rated

MDMA240UB1600ED Applications

* 3~ Rectifier with brake unit for drive inverters Package: E2-Pack
* Isolation Voltage: 3600 V~
* Industry standard outline
* RoHS compliant
* Soldering pins for PCB mounting
* Height: 17 mm
* Base plate: DCB ceramic
* Reduced weight
* Advanced power cycling D

📥 Download Datasheet

Preview of MDMA240UB1600ED PDF

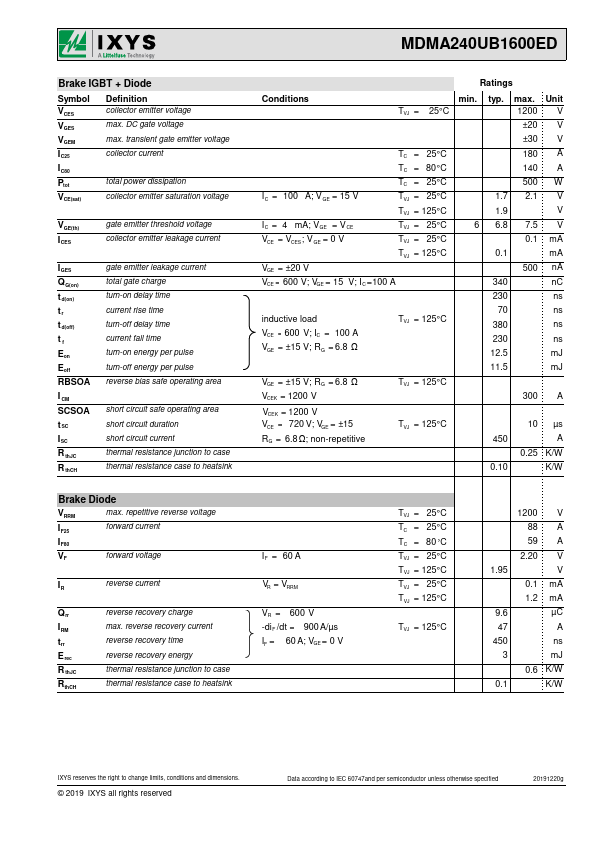

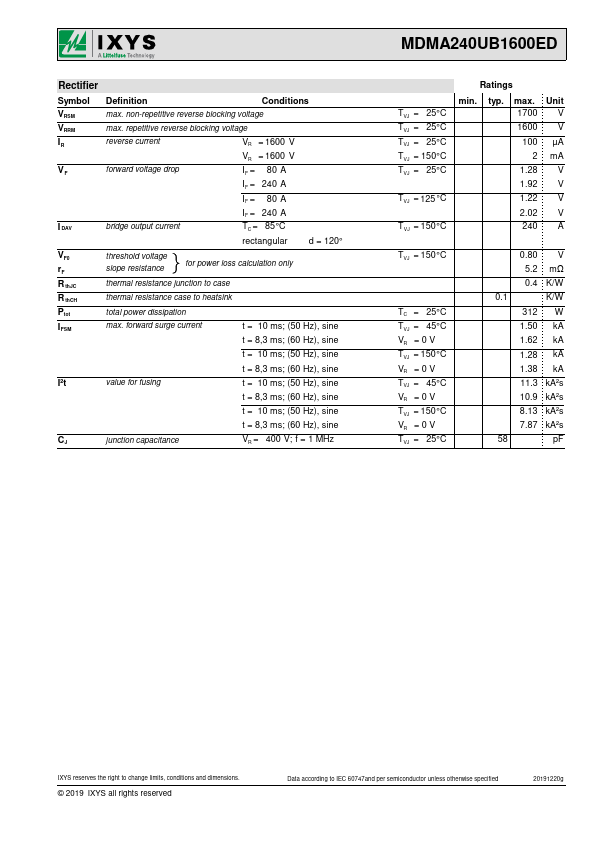

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MDMA240UB1600ED
Manufacturer
IXYS
File Size
435.49 KB
Datasheet
MDMA240UB1600ED-IXYS.pdf
Description
Standard Rectifier
