MDMA210UB1600PTED Standard Rectifier

IXYS

Description

Standard Rectifier Module 3~ Rectifier Bridge + Brake Unit + NTC Part number MDMA210UB1600PTED MDMA210UB1600PTED preliminary 3~ Rectifier Brake Ch.

📥 Download Datasheet

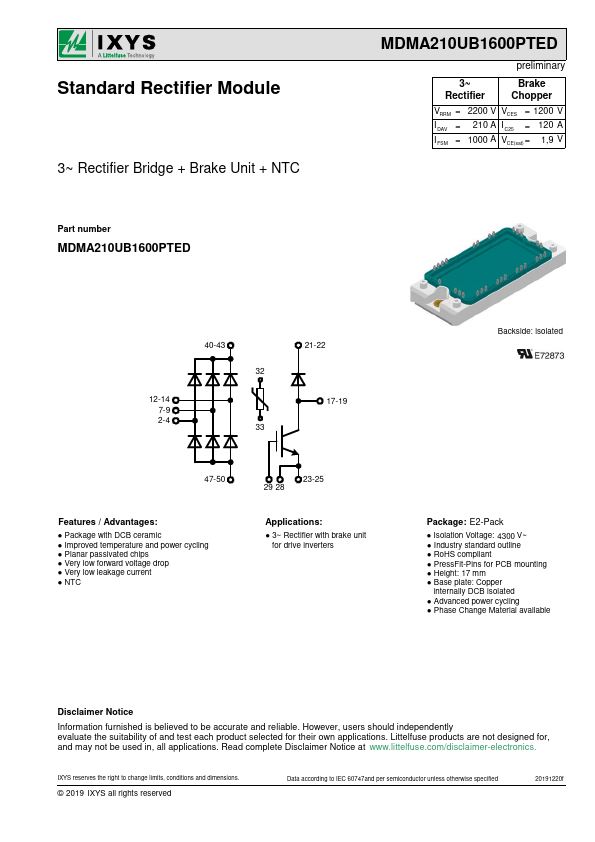

MDMA210UB1600PTED Datasheet Preview — Preview of MDMA210UB1600PTED PDF

Datasheet Specifications

Part number: MDMA210UB1600PTED
Manufacturer: IXYS
File Size: 436.47 KB
Datasheet: MDMA210UB1600PTED-IXYS.pdf
Description: Standard Rectifier

Features

* / Advantages:
* Package with DCB ceramic
* Improved temperature and power cycling
* Planar passivated chips
* Very low forward voltage drop
* Very low leakage current

Applications

* 3~ Rectifier with brake unit for drive inverters Backside: isolated Package: E2-Pack
* Isolation Voltage: 3600 V~
* Industry standard outline
* RoHS compliant
* PressFit-Pins for PCB mounting
* Height: 17 mm
* Base plate: Copper internally DCB isolated
* Advanced
