MDMA280P1600YD - Standard Rectifier

IXYS

📥 Download Datasheet

MDMA280P1600YD Datasheet Preview — Preview of MDMA280P1600YD PDF

Datasheet Details

Part number	MDMA280P1600YD
Manufacturer	IXYS
File Size	219.19 KB
Description	Standard Rectifier
Datasheet	MDMA280P1600YD-IXYS.pdf

MDMA280P1600YD Product details

Description

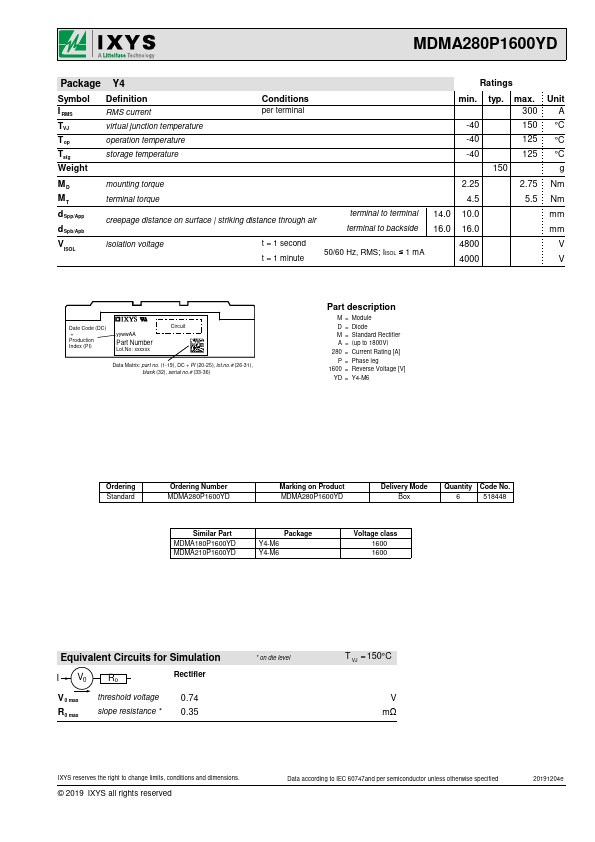

M = Module D = Diode M = Standard Rectifier A = (up to 1800V) 280 = Current Rating [A] P = Phase leg 1600 = Reverse Voltage [V] YD = Y4-M6 Ordering Standard Ordering Number MDMA280P1600YD Marking on Product MDMA280P1600YD Delivery Mode Box Quantity Code No.6 518448 Similar Part MDMA180P1600YD MDMA210P1600YD Package Y4-M6 Y4-M6 Voltage class 1600 1600 Equivalent Circuits for Simulation I V0 R0 Rectifier V 0 max R0 max threshold voltage slope resistance 0.74 0.35 on

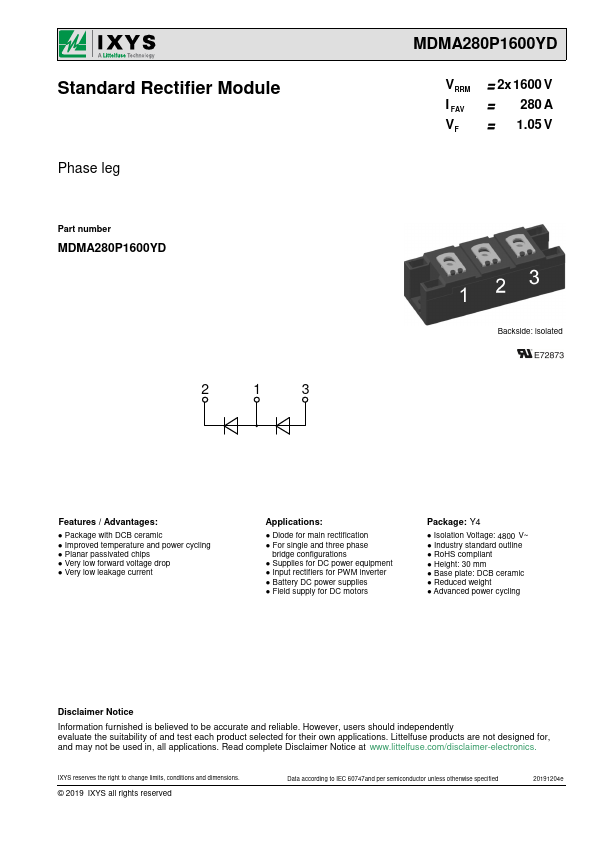

Features

/ Advantages:.
Package with DCB ceramic.
Improved temperature and power cycling.
Planar passivated chips.
Very low forward voltage drop.
Very low leakage current.
