MDMA660U1600PTEH Standard Rectifier Module

MDMA660U1600PTEH Description

Standard Rectifier Module 3~ Rectifier Bridge + NTC Part number MDMA660U1600PTEH MDMA660U1600PTEH 3~ Rectifier VRRM = I DAV = I FSM = 1600 V 660 A.
M = Module D = Diode M = Standard Rectifier A = (up to 1800V) 660 = Current Rating [A] U = 3~ Rectifier Bridge 1600 = Reverse Voltage [V] PT = PressFi.

MDMA660U1600PTEH Features

* / Advantages:
* Package with DCB ceramic
* Improved temperature and power cycling
* Planar passivated chips
* Very low forward voltage drop

MDMA660U1600PTEH Applications

* Diode for main rectification
* For three phase bridge configurations
* Supplies for DC power equipment
* Input rectifiers for PWM inverter
* Battery DC power supplies
* Field supply for DC motors Package: E3-Pack
* Isolation Voltage: 4300 V~
* Industry standard ou

📥 Download Datasheet

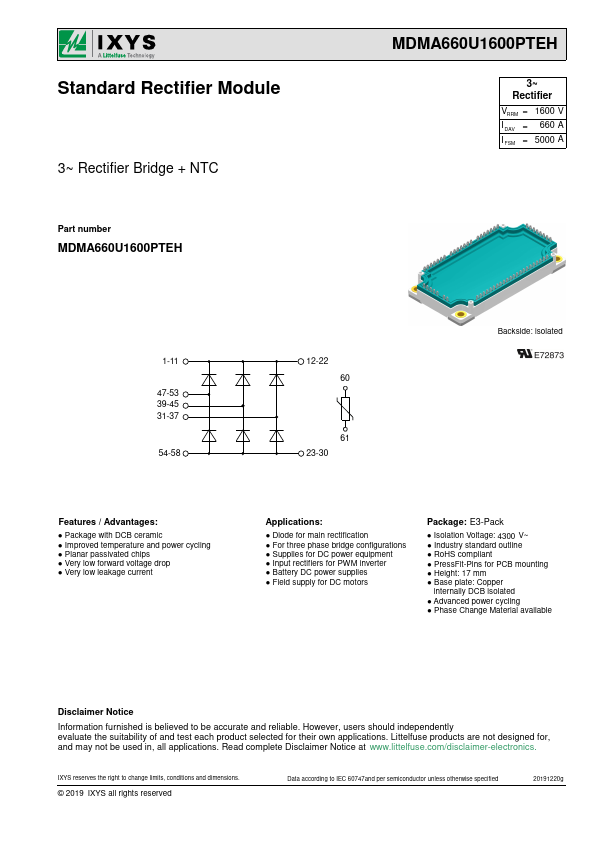

Preview of MDMA660U1600PTEH PDF

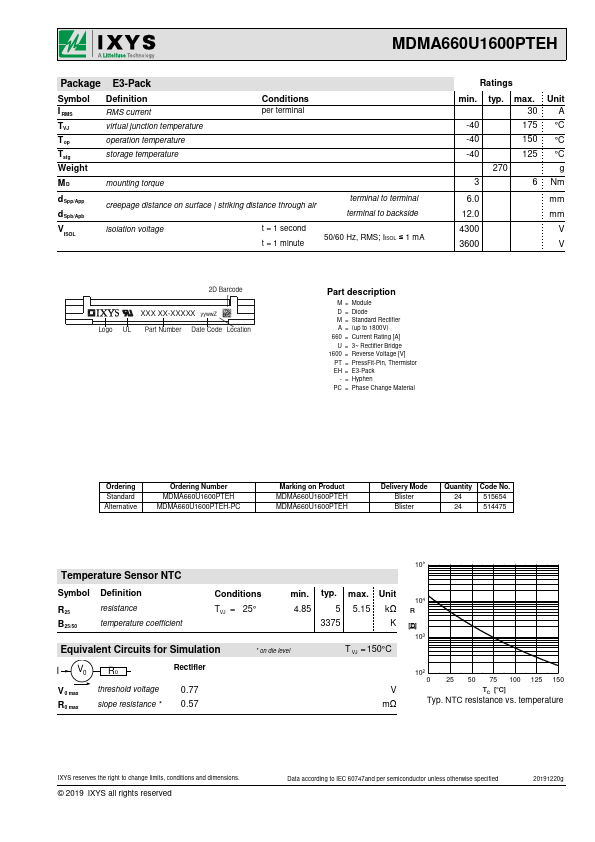

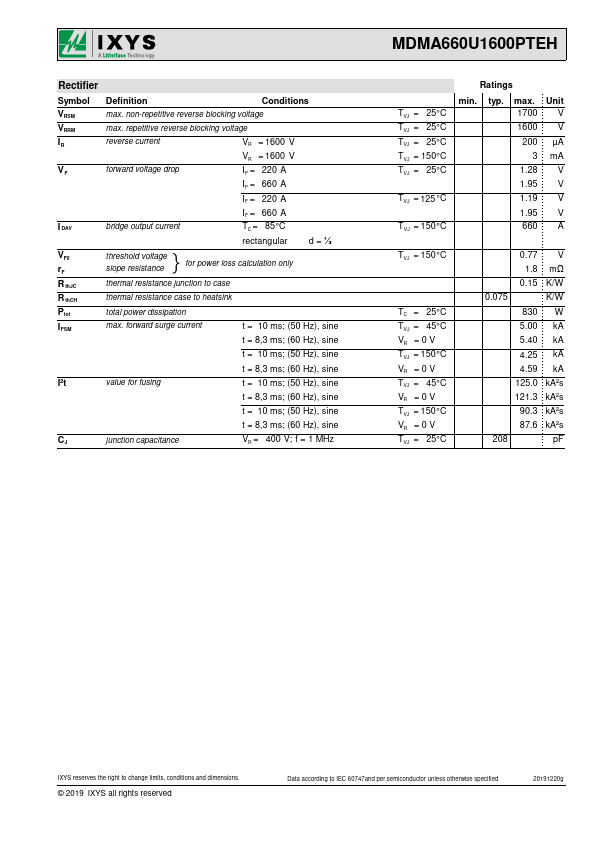

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MDMA660U1600PTEH
Manufacturer
IXYS
File Size
390.21 KB
Datasheet
MDMA660U1600PTEH-IXYS.pdf
Description
Standard Rectifier Module
