MIXA10W1200TML - XPT IGBT

Datasheet Summary

Features

High level of integration.
Rugged XPT design (Xtreme light Punch Through) results in: - short circuit rated for 10 µsec. - very low gate charge - square RBSOA @ 3x IC - low EMI.
Thin wafer technology combined with the XPT design results in a competitive low VCE(sat).
Temperature sense included.
SONIC™ diode - fast and soft reverse recovery - low operating forward voltage.

IXYS

📥 Download Datasheet

Datasheet Details

Part number	MIXA10W1200TML
Manufacturer	IXYS
File Size	277.11 KB
Description	XPT IGBT
Datasheet	MIXA10W1200TML Datasheet
Additional preview pages of the MIXA10W1200TML datasheet.

📁 Similar Datasheet

MIX2002 - 2.5W Single-Channel Class AB Audio Power Amplifier (Mixinno)
MIX2015A - 6W Single-Channel Class-F Audio Power Amplifier (Mixinno)
MIX2018 - 4.8W single channel Class-F audio power amplifier (WELLKING TECHNOLOGIES)
MIX2018 - 4.8W single channel Class-F audio power amplifier (Mixinno)
MIX2018A - 5W Calss-F Amplifier (Mixinno)
MIX2018E - 5W Single Channel Class-F Audio Power Amplifier (Mixinno)
MIX2029 - 7W single channel class-F audio power amplifier (Mixinno)
MIX2037 - 3W Single Channel Class-D Audio Power Amplifier (Mixinno)
MIX2039 - 5W Single Channel Class-F Audio Power Amplifier (Mixinno)
MIX205 - 16W Single-Channel Anti-Breaking Sound F-Class Amplifier (ChipSourceTek)

Other Datasheets by IXYS

Full PDF Text Transcription

Click to expand full text

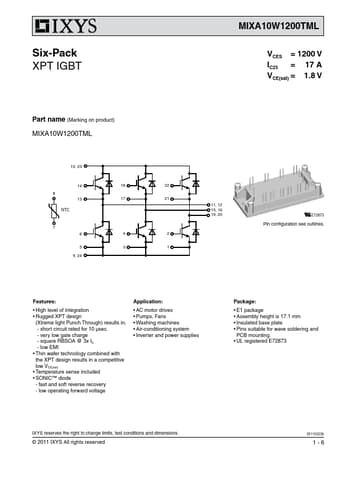

Six-Pack XPT IGBT Part name (Marking on product) MIXA10W1200TML 10, 23 14 8 13 NTC 7 6 5 9, 24 18 17 4 3 22 21 2 1 MIXA10W1200TML VCES = 1200 V IC25 = 17 A VCE(sat) = 1.8 V 11, 12 15, 16 19, 20 E72873 Pin configuration see outlines. Features: • High level of integration • Rugged XPT design (Xtreme light Punch Through) results in: - short circuit rated for 10 µsec.
