MIXA10WB1200TML - IGBT

Datasheet Summary

Features

  • High level of integration - only one power semiconductor module required for the whole drive.
  • Rugged XPT design (Xtreme light Punch Through) results in: - short circuit rated for 10 µsec. - very low gate charge - square RBSOA @ 3x IC - low EMI.
  • Thin wafer technology combined with the XPT design results in a competitive low VCE(sat).
  • Temperature sense included.
  • SONIC™ diode - fast and soft reverse recovery - low operating for.

📥 Download Datasheet

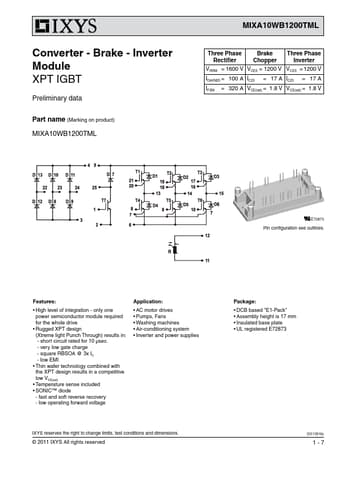

Datasheet preview – MIXA10WB1200TML

Datasheet Details

Part number MIXA10WB1200TML
Manufacturer IXYS
File Size 351.05 KB
Description IGBT
Datasheet download datasheet MIXA10WB1200TML Datasheet
