MIXG120W1200TEH

X2PT IGBT

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor IXYS Corporation MIXG120W1200TEH IGBT MODULE - SIXPACK E3-PACK-PF DigiKey 0 0
$0

MIXG120W1200TEH Datasheet (428.22 KB)

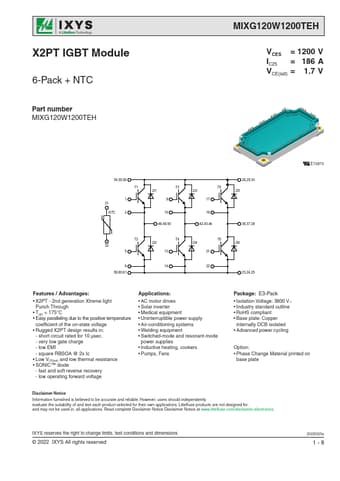

Preview of MIXG120W1200TEH PDF Datasheet

Datasheet Details

Part number:

MIXG120W1200TEH

Manufacturer:

IXYS

File Size:

428.22 KB

Description:

X2pt igbt

MIXG120W1200TEH Features

* / Advantages:

* X2PT - 2nd generation Xtreme light Punch Through

* Tvjm = 175°C

* Easy paralleling due to the positive temperature coefficient of the on-state voltage

* Rugged X2PT design results in: - short circuit rated for 10 μsec. - very low gate charge - low EMI
