MIXG240W1200TEH

X2PT IGBT

IXYS

Image	Manufacturer	P/N	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	IXYS Corporation	MIXG240W1200TEH	MIXG240W1200TEH	IGBT MODULE - SIXPACK E3-PACK-PF	DigiKey	0	0	$0	🛒 Buy Now

Download Datasheet (598.76 KB)

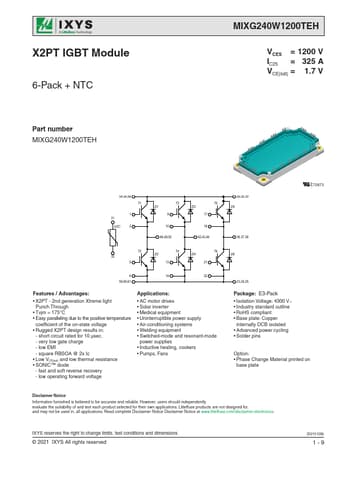

MIXG240W1200TEH Datasheet Preview — Preview of MIXG240W1200TEH Datasheet

Datasheet Details

Part number:

MIXG240W1200TEH

Manufacturer:

IXYS

File Size:

598.76 KB

Description:

X2pt igbt.
X2PT IGBT Module 6-Pack + NTC Part number MIXG240W1200TEH MIXG240W1200TEH VCES = 1200 V IC25 = 325 .
A VCE(sat) = 1.7 V 54,55,56 T1 1 31 NTC 2 T3 D1 9 10 48,49,50 T5 D3 17 18 42,43,44 T2 T4 T6.

✔ MIXG240W1200TEH Features

/ Advantages:
X2PT - 2nd generation Xtreme light Punch Through
Tvjm = 175°C
Easy paralleling due to the positive temperature coefficient of the on-state voltage
R

✔ MIXG240W1200TEH Application

AC motor drives
Solar inverter
Medical equipment
Uninterruptible power supply
Air-conditioning sy
