MMO140-12io7, MMO140 Datasheet - IXYS

MMO140-12io7 AC Controller Modules

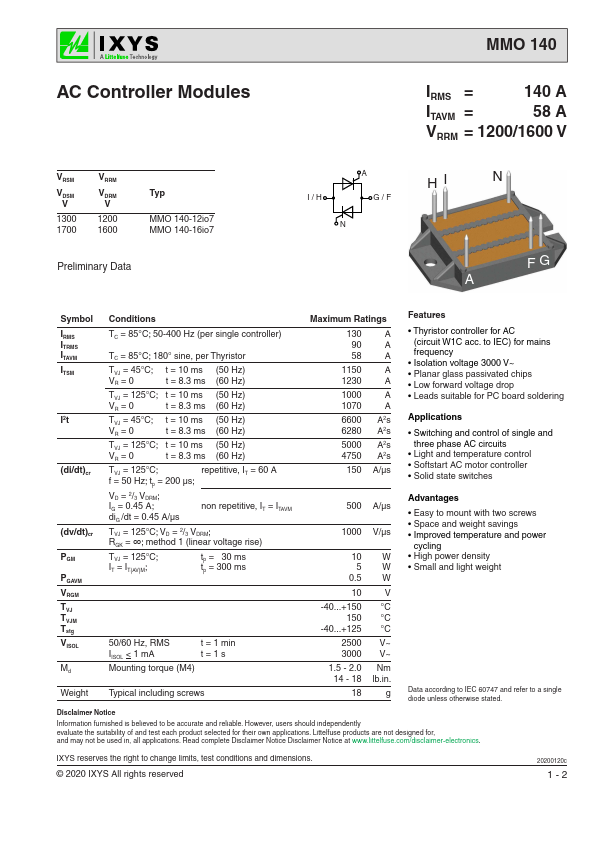

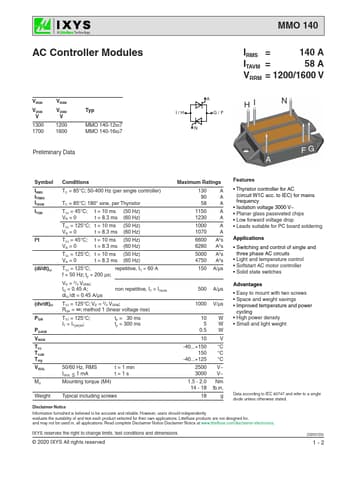

MMO 140 AC Controller Modules IRMS = 140 A ITAVM = 58 A VRRM = 1200/1600 V VRSM VDSM V 1300 1700 VRRM VDRM V 1200 1600 Typ MMO 140-12io7 MMO 140-16io7 Preliminary Data A I/H G/F N HI N FG A Symbol IRMS ITRMS ITAVM ITSM I2t (di/dt)cr (dv/dt)cr PGM PGAVM VRGM TVJ TVJM Tstg VISOL Md Conditions TC = 85°C; 50-400 Hz (per single controller) TC = 85°C; 180° sine, per Thyristor TVJ = 45°C; t = 10 ms (50 Hz) VR = 0 t = 8.3 ms (60 Hz) TVJ = 125°C; t = 10 ms (50 Hz) VR = 0 t = 8.3.

MMO140-12io7 Features

* Thyristor controller for AC (circuit W1C acc. to IEC) for mains frequency

* Isolation voltage 3000 V~

* Planar glass passivated chips

* Low forward voltage drop

* Leads suitable for PC board soldering Applications

* Switching and control of single an

MMO140_IXYSCorporation.pdf

MMO140-12io7 Datasheet Preview — This datasheet PDF includes multiple part numbers: MMO140-12io7, MMO140. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MMO140-12io7, MMO140

Manufacturer:

IXYS

File Size:

141.39 KB

Description:

Ac controller modules.

Note:

This datasheet PDF includes multiple part numbers: MMO140-12io7, MMO140.
Please refer to the document for exact specifications by model.
