N2825TE400 Phase Control Thyristor

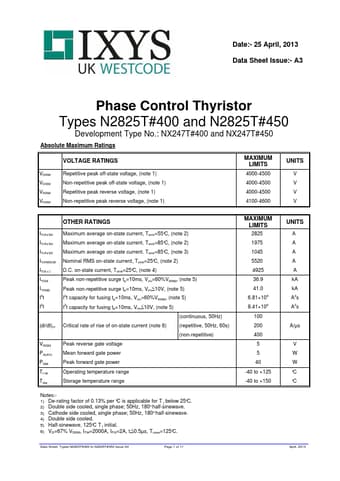

Date:- 25 April, 2013 Data Sheet Issue:- A3 Phase Control Thyristor Types N2825T#400 and N2825T#450 Development Type No.: NX247T#400 and NX247T#450 Absolute Maximum Ratings VDRM VDSM VRRM VRSM VOLTAGE RATINGS Repetitive peak off-state voltage, (note 1) Non-repetitive peak off-state voltage, (note 1) Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 4000-4500 4000-4500 4000-4500 4100-4600 UNITS V V V V OTHER RATINGS IT(AV)M IT(AV)M IT(AV.
