N2830HE260 Phase Control Thyristor

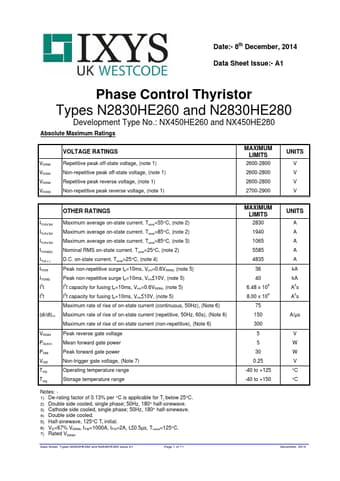

Date:- 8th December, 2014 Data Sheet Issue:- A1 Phase Control Thyristor Types N2830HE260 and N2830HE280 Development Type No.: NX450HE260 and NX450HE280 Absolute Maximum Ratings VDRM VDSM VRRM VRSM VOLTAGE RATINGS Repetitive peak off-state voltage, (note 1) Non-repetitive peak off-state voltage, (note 1) Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 2600-2800 2600-2800 2600-2800 2700-2900 UNITS V V V V OTHER RATINGS IT(AV)M IT(AV)M I.
