NCD2100 - Digital Programmable Capacitor

NCD2100 Description

INTEGRATED CIRCUITS DIVISION .
The NCD2100 is an EEPROM based digitally programmable variable capacitor that provides capacitive offset trimming for capacitance sensitive circuits.

NCD2100 Features

* Wide capacitance range of 6.6pF to 37.553pF
* Small step size: 0.063pF
* Digitally select up to 1024 capacitance values.
* Operating supply voltage range of 2.5V to 5.5V
* Minimal current draw: IDD = 1 A (Typical)
* Industrial temperature range -40

NCD2100 Applications

* VCXOs
* Crystal Oscillators
* Tunable RF Stages
* Filter Tuning
* RFID Tags
* Industrial Wireless Controls

📥 Download Datasheet

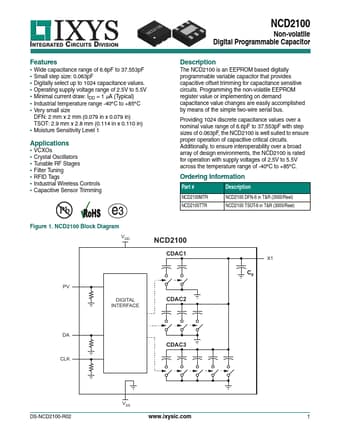

Preview of NCD2100 PDF
