NCD57001F

High Current IGBT Gate Driver

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor onsemi NCD57001FDWR2G DGTL ISO 5KV 1CH GATE DVR 16SOIC DigiKey 107 500 units
$2.37

NCD57001F Datasheet (221.71 KB)

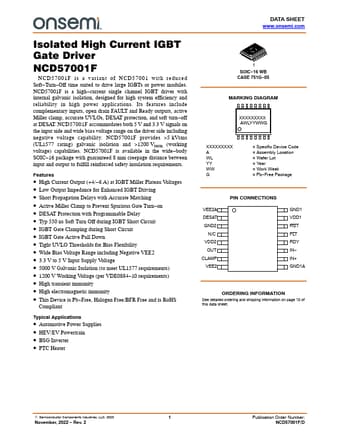

Preview of NCD57001F PDF

Datasheet Details

Part number:

NCD57001F

Manufacturer:

ON Semiconductor ↗

File Size:

221.71 KB

Description:

High current igbt gate driver.
Isolated High Current IGBT Gate Driver NCD57001F NCD57001F is a variant of NCD57001 with reduced Soft

*Turn

*Off time suited to drive la.

NCD57001F Features

* include complementary inputs, open drain FAULT and Ready outputs, active Miller clamp, accurate UVLOs, DESAT protection, and soft turn

* off at DESAT. NCD57001F accommodates both 5 V and 3.3 V signals on the input side and wide bias voltage range on the driver side including negative voltage c

NCD57001F General Description

Pin Name No. I/O VEE2A 1 Power VEE2 8 DESAT 2 I/O GND2 3 N/C 4 VDD2 5 OUT 6 CLAMP 7 GND1 9 16 IN+ 10 IN

* 11 RDY 12 Power

*

* Power O I/O Power I I O FLT RST VDD1 13 O 14 I 15 Power NCD57001F Description Output side negative power supply. .
