| Part number | NCD5701B, NCD5701A |
|---|---|
| Manufacturer | ON Semiconductor |
| File Size | 338.23 KB |
| Description | High Current IGBT Gate Drivers |
| Datasheet |

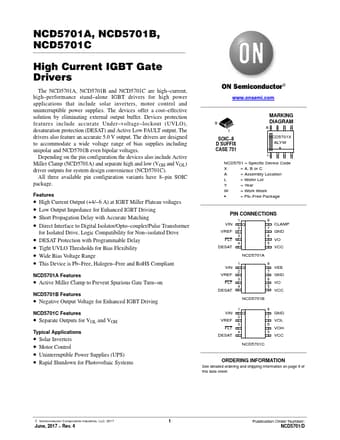

 NCD5701A-ONSemiconductor.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: NCD5701B, NCD5701A. Please refer to the document for exact specifications by model. |
Pin Name No.I/O/x Description VIN 1 I Input signal to control the output.In applications which require galvanic isolation, VIN is generated at the opto output, the pulse transformer secondary or the digital isolator output.There is a signal inversion from VIN to VO (VOH/VOL).VIN is internally clamped to 5.5 V and has a pull up resistor of 1 MW to ensure that an output is low in the absence of an input signal. width is required at VIN before VO (VOH/VOL) i
