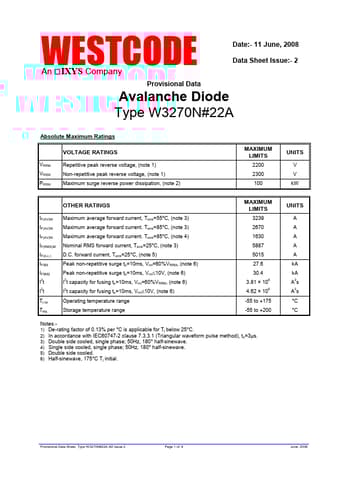

WESTCODE An IXYS Company Date:- 11 June, 2008 Data Sheet Issue:- 2 Provisional Data Avalanche Diode Type W3270N#22A Absolute Maximum Ratings VRRM VRSM PRSM VOLTAGE RATINGS Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) Maximum surge reverse power dissipation, (note 2) MAXIMUM LIMITS 2200 2300 100 OTHER RATINGS IF(AV)M IF(AV)M IF(AV)M IF(RMS)M IF(d.c.) IFSM IFSM2 I2t I2t Tj op Tstg Maximum average forward current, Tsink=55°C, (note 3) Maximum ave
Datasheet Details
Part number:
W3270NC22A
Manufacturer:
IXYS
File Size:
263.94 KB
Description:
Avalanche diode.
