W3270NT200 Rectifier Diode

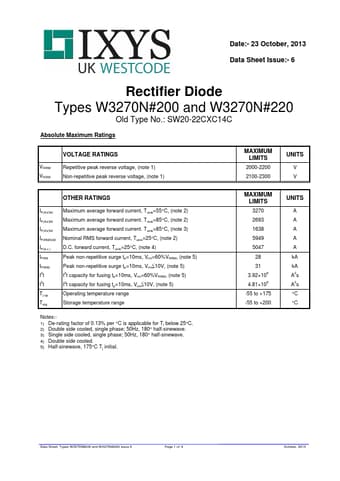

Date:- 23 October, 2013 Data Sheet Issue:- 6 Rectifier Diode Types W3270N#200 and W3270N#220 Old Type No.: SW20-22CXC14C Absolute Maximum Ratings VRRM VRSM VOLTAGE RATINGS Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 2000-2200 2100-2300 UNITS V V OTHER RATINGS IF(AV)M IF(AV)M IF(AV)M IF(RMS)M IF(d.c.) IFSM IFSM2 I2t I2t Tj op Tstg Maximum average forward current, Tsink=55°C, (note 2) Maximum average forward current. Tsink=85°C, (.
