AT2575 - 2A Step Down Voltage Switching Regulators

The AT2575 by Immense Advance Tech is a 2A Step Down Voltage Switching Regulators. Below is the official datasheet preview.

📥 Download Datasheet

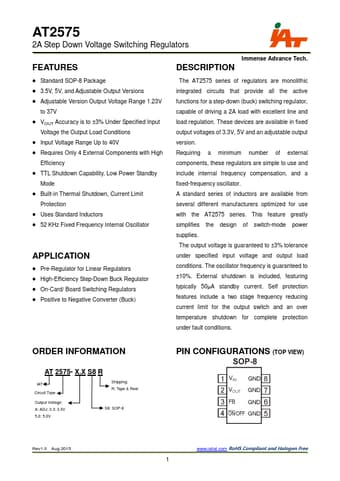

AT2575 2A Step Down Voltage Switching Regulators by Immense Advance Tech - Datasheet Preview — Official preview page of the **AT2575** 2A Step Down Voltage Switching Regulators datasheet (Immense Advance Tech).

Datasheet Details

Part number	AT2575
Manufacturer	Immense Advance Tech
File Size	1.60 MB
Description	2A Step Down Voltage Switching Regulators
Datasheet	AT2575-ImmenseAdvanceTech.pdf
Additional preview pages of the AT2575 datasheet.

AT2575 Product details

Description

The AT2575 series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 2A load with excellent line and load regulation.

Features

Standard SOP-8 Package 3.5V, 5V, and Adjustable Output Versions Adjustable Version Output Voltage Range 1.23V to 37V VOUT Accuracy is to ±3% Under Specified Input Voltage the Output Load Conditions Input Voltage Range Up to 40V Requires Only 4 External Components with High Efficiency TTL Shutdown Capability, Low Power Standby Mode Built-in Thermal Shutdown, Current Limit Protection Uses Standard Inductors 52 KHz Fixed Frequency Internal Oscillator.
