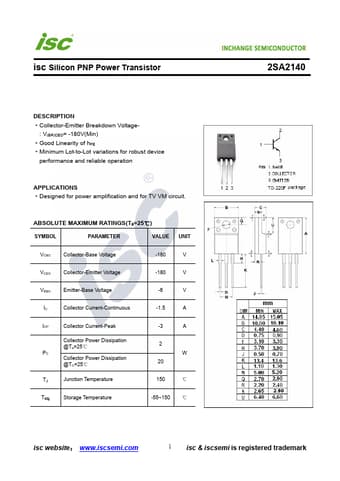

2SA2140 Datasheet, Transistor, Inchange Semiconductor

PDF File Details

Part number:

2SA2140

Manufacturer:

Inchange Semiconductor

File Size:

214.38kb

Download:

📄 Datasheet

Description:

Silicon pnp power transistor.

Collector-Emitter Breakdown Voltage- : V(BR)CEO= -180V(Min)

Good Linearity of hFE

Minimum Lot-to-Lot varia

2SA2140 Application

• Applications
• Designed for power amplification and for TV VM circuit. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCB
