2SA2031 - Power Transistor

2SA2031 Description

isc Silicon PNP Power Transistor .
Large current capacitance. Wide ASO and high durability against breakdown. Complement to Type 2SC5669. Minimum Lot-to-Lot variations.

2SA2031 Applications

* 230V/15A AF100W output application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -230 V VCEO Collector-Emitter Voltage -230 V VEBO Emitter-Base Voltage -6 V IC Collector Current-Continuous -15 A ICM Collector Current-Pulse PC Co

📥 Download Datasheet

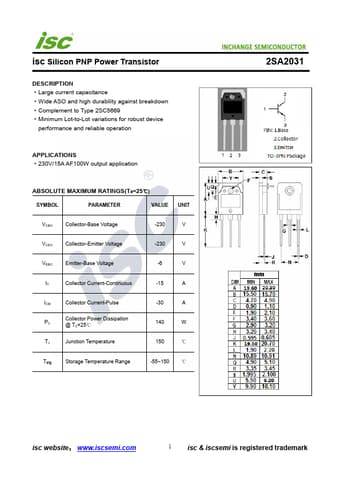

Preview of 2SA2031 PDF
datasheet Preview Page 2
