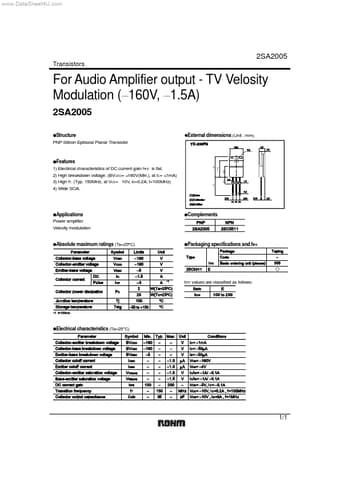

2SA2005
Transistors
For Audio Amplifier output - TV Velosity Modulation ( 160V, 1.5A)
2SA2005
Structure PNP Silicon Epitaxial Pl.
* 1) Electrical characteristics of DC current gain hFE is flat. 2) High breakdown voltage. (BVCEO= 160V(Min.), at IC= 1mA) 3) High fT. (Typ. 150MHz, at VCE= 10V, IE=0.2A, f=100MHz) 4) Wide SOA. øï÷Þ¿-» øî÷ݱ´´»½¬±® øí÷Û³
* ¬¬»® ïòî ïòí ðòè îòëì øï÷ øî÷ øí÷ îòëì ðòéë îòê Applications Power amp
