2SA2030 - Low frequency transistor

Datasheet Summary

Features

  • 1)High current. 2)Collector-Emitter saturation voltage is low. 　 VCE(sat)≦250mA at IC=-200mA/IB=-10mA l.

📥 Download Datasheet

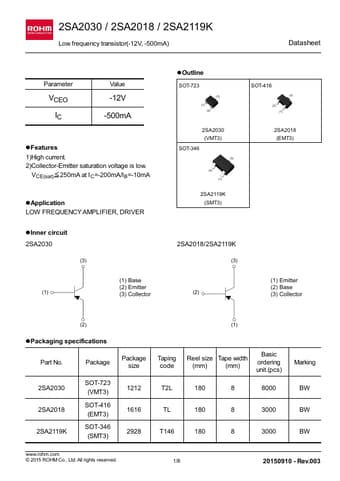

Datasheet preview – 2SA2030

Datasheet Details

Part number 2SA2030
Manufacturer ROHM
File Size 1.65 MB
Description Low frequency transistor
Datasheet download datasheet 2SA2030 Datasheet
Additional preview pages of the 2SA2030 datasheet.

📁 Similar Datasheet

  • 2SA203 - PNP Transistor (ETC)
  • 2SA2031 - NPN Triple Diffused Planar Silicon Transistor (Sanyo Semicon Device)
  • 2SA2031 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SA2031 - Power Transistor (Inchange Semiconductor)
  • 2SA2034 - Silicon PNP Transistor (Toshiba)
  • 2SA2037 - PNP / NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SA2039 - PNP / NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SA2039 - Bipolar Transistor (ON Semiconductor)
  • 2SA2039 - Silicon PNP Power Transistor (Inchange Semiconductor)
  • 2SA2002 - Silicon PNP Epitaxial Type Transistor (IDC)
Other Datasheets by Rohm

Full PDF Text Transcription

Click to expand full text
2SA2030 / 2SA2018 / 2SA2119K Low frequency transistor(-12V, -500mA) Datasheet Parameter VCEO IC Value -12V -500mA lFeatures 1)High current. 2)Collector-Emitter saturation voltage is low. 　 VCE(sat)≦250mA at IC=-200mA/IB=-10mA lApplication LOW FREQUENCY AMPLIFIER, DRIVER lInner circuit 2SA2030 lOutline SOT-723 SOT-416 　　 2SA2030 2SA2018 (VMT3) (EMT3) SOT-346 　 　 　 　　　　　　　　 　 　 　 　　 2SA2119K (SMT3) 　 　 　 　 　 　　　　　　　　 2SA2018/2SA2119K lPackaging specifications 　　　　　　　　　　　　　　　　　　　　　　 Part No. Package Package size Taping code Reel size Tape width (mm) (mm) Basic ordering unit.
