2SA2031

NPN Triple Diffused Planar Silicon Transistor

2SA2031 Features

* Package Dimensions unit : mm 2022A [2SA2031 / 2SC5669] 3.5 Large current capacitance. Wide ASO and high durability against breakdown. Adoption of MBIT process. www.DataSheet4U.com 15.6 14.0 2.6 3.2 4.8 2.0 1.6 2.0 20.0 1.3 1.2 15.0 20.0 0.6 1.0 1 0.6 2 3 1.4

2SA2031 Datasheet (64.88 KB)

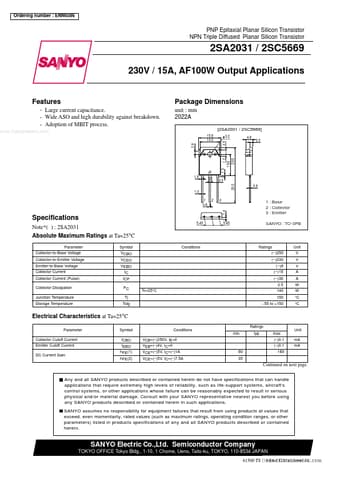

Preview of 2SA2031 PDF

Datasheet Details

Part number:

2SA2031

Manufacturer:

Sanyo Semicon Device

File Size:

64.88 KB

Description:

Npn triple diffused planar silicon transistor.
Ordering number : ENN6586 2SA2031 / 2SC5669 PNP Epitaxial Planar Silicon Transistor NPN Triple Diffused Planar Silicon Transistor 2SA2031 / 2SC5669.
