* Adoption of MBIT processes.
* Large current capacitance.
* Low collector-to-emitter saturation voltage.
* Ultrasmall-sized package permitting applied sets to be made small and slim.
* High allowable power dissipation. 0.5 3 1.5 2 3.0 0.75 1 1.0 0.4 2.5 4.25max 0.4 Specifi
2SA2012
Sanyo Semicon Device
49.57 KB

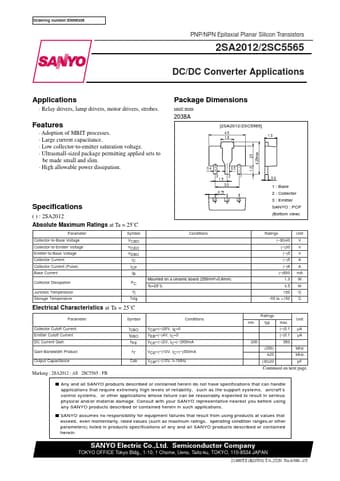

Pnp/npn epitaxial planar silicon transistors.
Ordering number:ENN6306
PNP/NPN Epitaxial Planar Silicon Transistors
2SA2012/2SC5565
DC/DC Converter Applications
Applications
* Relay drivers, .
