2SA2017 - Power Transistor

Features

  • 1) Low VCE(sat). (Typ.
  • 0.3V at IC/IB =.
  • 2 /.
  • 0.2A) 2) Excellent DC current gain characteristics. 3) Pc = 30W (Tc = 25°C) 4) Wide SOA (safe operating area). 5) Complements the 2SC5574. !Absolute maximum ratings (Ta = 25°C) Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Limits -80 -80 -5 -4 -6 30 150 -55~+150 Unit.

📥 Download Datasheet

Datasheet Details

Part number 2SA2017
Manufacturer ROHM
File Size 44.03 KB
Description Power Transistor
Datasheet download datasheet 2SA2017 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SA201 PNP transistor ETC
2SA2010 Silicon PNP epitaxial planer type Transistor Panasonic Semiconductor
2SA2011 PNP/NPN Epitaxial Planar Silicon Transistors Sanyo Semicon Device
2SA2012 PNP/NPN Epitaxial Planar Silicon Transistors Sanyo Semicon Device
2SA2012 Bipolar Transistor ON Semiconductor

Other Datasheets by ROHM

Part Number Description
2SA2018 Low frequency transistor
2SA2005 Transistors
2SA2006 High-speed Switching Transistor
2SA2029 General Purpose Transistor
2SA2030 Low frequency transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

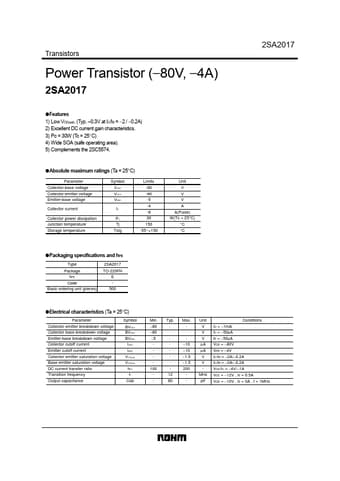

Transistors Power Transistor (−80V, −4A) 2SA2017 !Features 1) Low VCE(sat). (Typ. –0.3V at IC/IB = −2 / −0.2A) 2) Excellent DC current gain characteristics. 3) Pc = 30W (Tc = 25°C) 4) Wide SOA (safe operating area). 5) Complements the 2SC5574.
