2SA2015 - PNP/NPN Epitaxial Planar Silicon Transistors

2SA2015 Description

Ordering number:ENN6308 PNP/NPN Epitaxial Planar Silicon Transistors 2SA2015/2SC5568 DC/DC Converter Applications Applications * Relay drivers, .

2SA2015 Features

* Adoption of MBIT processes.
* Large current capacitance.
* Low collector-to-emitter saturation voltage.
* High-speed switching.
* Ultrasmall-sized package permitting applied sets to be made small and slim.
* High allowable power dissipation. 3 0.5 0.4 1.5 3.0 0.75 2 1 0.

2SA2015 Applications

* Applications

📥 Download Datasheet

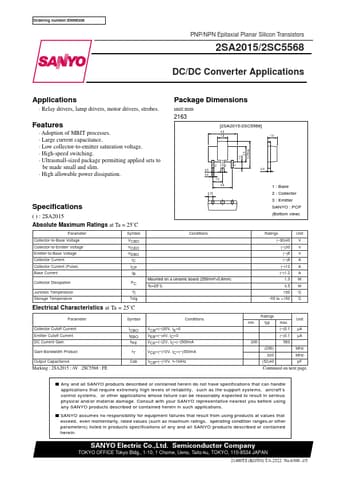

Preview of 2SA2015 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SA2015
Manufacturer
Sanyo Semicon Device
File Size
49.95 KB
Datasheet
2SA2015_SanyoSemiconDevice.pdf
Description
PNP/NPN Epitaxial Planar Silicon Transistors
