2SA2006 - High-speed Switching Transistor

This page provides the datasheet information for the 2SA2006, a member of the 2SA1906 High-speed Switching Transistor family.

Datasheet Summary

Features

  • 1) High speed switching. (tf : Typ. 0.15 µs at IC =.
  • 3A) 2) Low VCE(sat). (Typ.
  • 0.2V at IC / IB =.
  • 3 /.
  • 0.15A) 3) Wide SOA. (safe operating area) 4) Complements the 2SC5103 / 2SC5525. !Absolute maximum ratings (Ta = 25°C) Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation 2SA1952 2SA1906 2SA2006 Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Limits.

📥 Download Datasheet

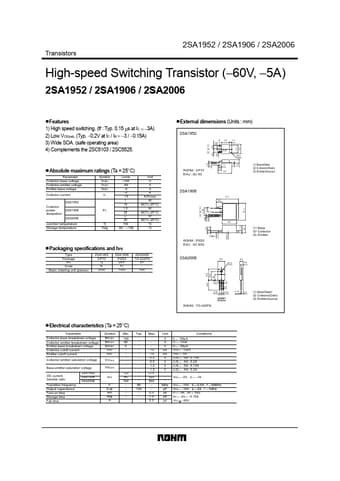

Datasheet preview – 2SA2006

Datasheet Details

Part number 2SA2006
Manufacturer ROHM
File Size 58.17 KB
Description High-speed Switching Transistor
Datasheet download datasheet 2SA2006 Datasheet
Additional preview pages of the 2SA2006 datasheet.

📁 Similar Datasheet

  • 2SA2002 - Silicon PNP Epitaxial Type Transistor (IDC)
  • 2SA2004 - Silicon PNP Transistor (Panasonic Semiconductor)
  • 2SA2004 - PNP Transistor (INCHANGE)
  • 2SA2009 - Silicon PNP epitaxial planer type Transistor (Panasonic Semiconductor)
  • 2SA201 - PNP transistor (ETC)
  • 2SA2010 - Silicon PNP epitaxial planer type Transistor (Panasonic Semiconductor)
  • 2SA2011 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SA2012 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SA2012 - Bipolar Transistor (ON Semiconductor)
  • 2SA2013 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
Other Datasheets by ROHM

Full PDF Text Transcription

Click to expand full text
Transistors 2SA1952 / 2SA1906 / 2SA2006 High-speed Switching Transistor (−60V, −5A) 2SA1952 / 2SA1906 / 2SA2006 !Features 1) High speed switching. (tf : Typ. 0.15 µs at IC = −3A) 2) Low VCE(sat). (Typ. −0.2V at IC / IB = −3 / −0.15A) 3) Wide SOA. (safe operating area) 4) Complements the 2SC5103 / 2SC5525. !Absolute maximum ratings (Ta = 25°C) Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation 2SA1952 2SA1906 2SA2006 Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Limits −100 −60 −5 −5 −10 1 10 1.
