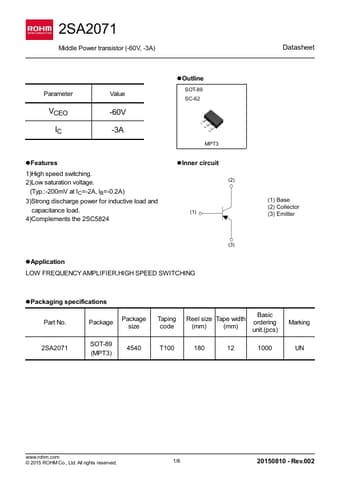

2SA2071 Datasheet, transistor equivalent, ROHM

2SA2071 Features

• Transistor 1)High speed switching. 2)Low saturation voltage. 　(Typ.:-200mV at IC=-2A, lB=-0.2A) 3)Strong discharge power for inductive load and 　 capacitance load. 4)Complements the 2SC5824 lOutl

PDF File Details

Part number:

2SA2071

Manufacturer:

ROHM ↗

File Size:

1.20MB

Download:

📄 Datasheet

Description:

Middle power transistor.
