2SA2072 Transistors High voltage discharge, High speed switching, Low Noise ( *60V, *3A) 2SA2072 z.

2SA2072 Features

* 1) High speed switching. ( Tf : Typ. : 20ns at IC =
* 3A) 2) Low saturation voltage, typically. (Typ. :
* 200mV at IC =
* 2.0A, IB =
* 200mA) 3) Strong discharge power for inductive load and capacitance load. 4) Low Noise. 5) Complements the 2SC5825. zExternal dimensions

2SA2072 Applications

* High speed switching, Low noise (2) Collector (3) Emitter 0.9 (1) 2.3 (2) (3) 2.3 0.8Min. 0.5 1.0 (1) Base 0.65 Abbreviated symbol : A2072 zStructure PNP silicon epitaxial planar transistor www. DataSheet4U. com zPackaging specifications Package Type Code Basic ordering unit (pieces) 2SA207

📥 Download Datasheet

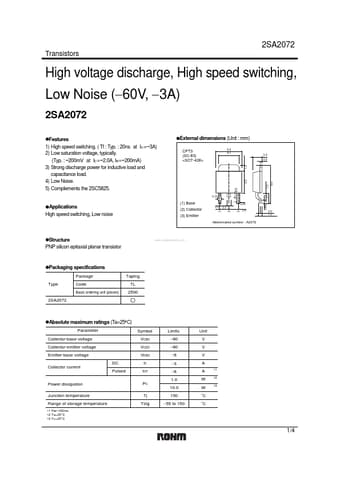

Preview of 2SA2072 PDF
