2SA2029

General Purpose Transistor

2SA2029 Features

* 1)Excellent hFE linearity. 2)Complements the 2SC5658/2SC4617EB/   2SC4617/2SC4081UB/2SC4081U3/2SC2412K lApplication GENERAL PURPOSE SMALL SIGNAL AMPLIFIER lOutline SOT-723   2SA2029 (VMT3) SOT-416   2SA1774 (EMT3) SOT-323 SOT-416FL   2SA1774EB (EMT3F) SOT-323FL   2SA1576UB (UMT3F) SOT-346   2SA15

2SA2029 Datasheet (2.73 MB)

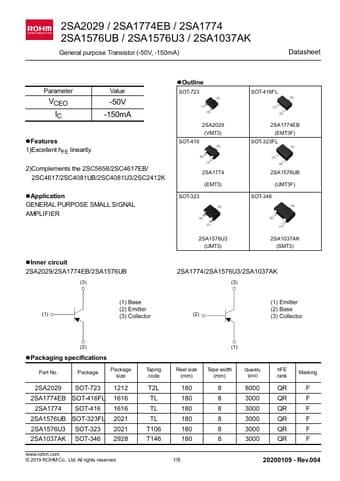

Preview of 2SA2029 PDF

Datasheet Details

Part number:

2SA2029

Manufacturer:

ROHM ↗

File Size:

2.73 MB

Description:

General purpose transistor.
2SA2029 / 2SA1774EB / 2SA1774 2SA1576UB / 2SA1576U3 / 2SA1037AK General purpose Transistor (-50V, -150mA) Datasheet Parameter VCEO IC Value -50V -1.
