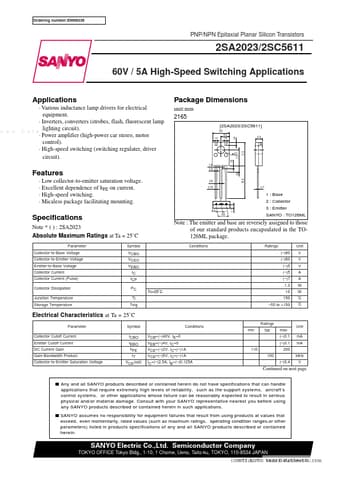

Ordering number:ENN6336 PNP/NPN Epitaxial Planar Silicon Transistors 2SA2023/2SC5611 60V / 5A High-Speed Switching Applications Applications Various inductance lamp drivers for electrical equipment. Inverters, converters (strobes, flash, fluorescent lamp lighting circuit). a S h e e t 4 U . c o m Power amplifier (high-power car stereo, motor control). High-speed switching (switching regulater, driver circuit). Package Dimensions unit:mm 2165 [2SA2023/2SC5611] 8.0 1.0 4.

2SA2023 Features

* Low collector-to-emitter saturation voltage.

* Excellent dependence of hFE on current.

* High-speed switching.

* Micaless package facilitating mounting. 1.6 0.8 1.5 3.0 0.8 0.75 7.5 15.5 11.0 0.7 1 2 3 Specifications Note

* ( ) : 2SA2023 Absolute Maximum Ratings at T
