2SA2025

PNP Epitaxial Planar Silicon Transistor

2SA2025 Features

* Adoption of MBIT processes.

* Large current capacitance.

* Low collector-to-emitter saturation voltage.

* High-speed switching.

* Ultrasmall-sized package permitting applied sets to be made small and slim.

* High allowable power dissipation. Package Dimensions unit:mm 2033

2SA2025 Datasheet (37.17 KB)

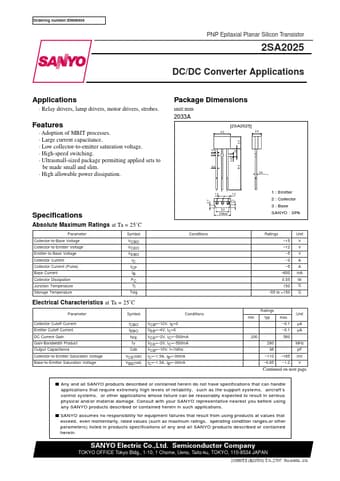

Preview of 2SA2025 PDF

Datasheet Details

Part number:

2SA2025

Manufacturer:

Sanyo Semicon Device

File Size:

37.17 KB

Description:

Pnp epitaxial planar silicon transistor.
Ordering number:ENN6404 PNP Epitaxial Planar Silicon Transistor 2SA2025 DC/DC Converter Applications Applications
* Relay drivers, lamp drivers,.
