2SA2021 - Silicon PNP epitaxial planer type Transistor

2SA2021 Description

Transistors 2SA2021 Silicon PNP epitaxial planer type Unit: mm For general amplification Complementary to 2SC5609 I .

2SA2021 Features

* High foward current transfer ratio hFE
* SSS-mini type package, allowing downsizing and thinning of the equipment and automatic insertion through the tape packing 0.33+0.05
* 0.02 3 0.10+0.05
* 0.02 (0.40) (0.40) 0.80±0.05 1.20±0.05 5˚ 0.15 min. 0.23+0.05

📥 Download Datasheet

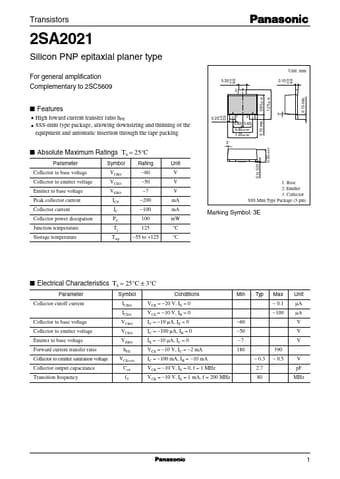

Preview of 2SA2021 PDF

Datasheet Details

Part number
2SA2021
Manufacturer
Panasonic Semiconductor
File Size
45.25 KB
Datasheet
2SA2021_PanasonicSemiconductor.pdf
Description
Silicon PNP epitaxial planer type Transistor
