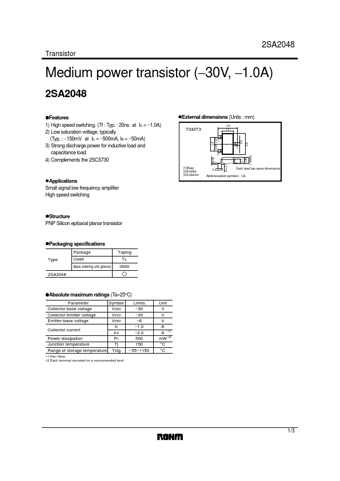

Part number:
2SA2048
Manufacturer:
File Size:
42.40 KB
Description:
Medium power transistor.
* 1) High speed switching. (Tf : Typ. : 20ns at IC =
* 1.0A) 2) Low saturation voltage, typically (Typ. :
* 150mV at IC =
* 500mA, IB =
* 50mA) 3) Strong discharge power for inductive load and capacitance load. 4) Complements the 2SC5730 !Applications Small signal low frequ
2SA2048
42.40 KB
Medium power transistor.
