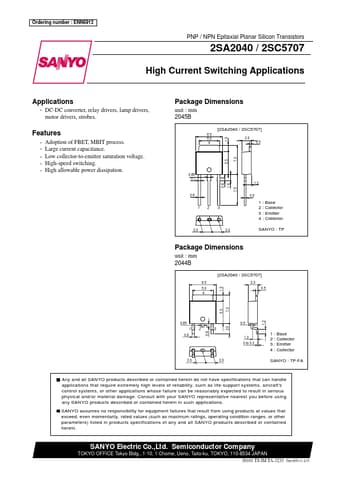

* Adoption of FBET, MBIT process. Large current capacitance. Low collector-to-emitter saturation voltage. High-speed switching. High allowable power dissipation. 1.5 2.3 0.5 0.85 0.7 5.5 7.0 0.8 1.6 1.2 0.6 7.5 0.5 1 2 3 1 : Base 2 : Co
2SA2040
Sanyo Semicon Device
95.96 KB
Pnp / npn epitaxial planar silicon transistors.
