2SA2070 - Silicon PNP Transistor

Datasheet Summary

Features

  • EXTENT.

📥 Download Datasheet

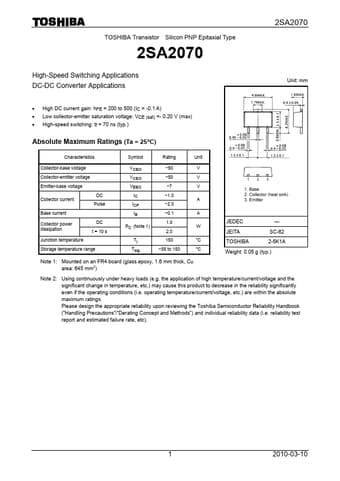

Datasheet preview – 2SA2070

Datasheet Details

Part number 2SA2070
Manufacturer Toshiba Semiconductor
File Size 150.62 KB
Description Silicon PNP Transistor
Datasheet download datasheet 2SA2070 Datasheet
Additional preview pages of the 2SA2070 datasheet.

📁 Similar Datasheet

  • 2SA2071 - Middle Power transistor (ROHM)
  • 2SA2071P5 - Power transistor (ROHM)
  • 2SA2072 - Transistors (Rohm)
  • 2SA2073 - Transistors (Rohm)
  • 2SA2074 - Silicon PNP epitaxial planar type Power Transistors (Panasonic)
  • 2SA2075 - Silicon PNP epitaxial planar type Power Transistors (Panasonic)
  • 2SA2077 - Silicon PNP Transistor (Panasonic)
  • 2SA2078 - Silicon PNP epitaxial planar type Power Transistors (Panasonic)
  • 2SA2079 - Silicon PNP epitaxial planar type Power Transistors (Panasonic)
  • 2SA2002 - Silicon PNP Epitaxial Type Transistor (IDC)
Other Datasheets by Toshiba Semiconductor

Full PDF Text Transcription

Click to expand full text
TOSHIBA Transistor Silicon PNP Epitaxial Type 2SA2070 High-Speed Switching Applications DC-DC Converter Applications 2SA2070 Unit: mm • High DC current gain: hFE = 200 to 500 (IC = -0.1 A) • Low collector-emitter saturation voltage: VCE (sat) =- 0.20 V (max) • High-speed switching: tf = 70 ns (typ.) Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current DC Pulse Base current Collector power dissipation DC t = 10 s Junction temperature Storage temperature range VCBO VCEO VEBO IC ICP IB PC (Note 1) Tj Tstg −50 −50 −7 −1.0 −2.0 −0.1 1.0 2.0 150 −55 to 150 V V V A A W °C °C JEDEC ― JEITA SC-62 TOSHIBA 2-5K1A Weight: 0.05 g (typ.
