2SA2061 - Silicon PNP Transistor

📥 Download Datasheet

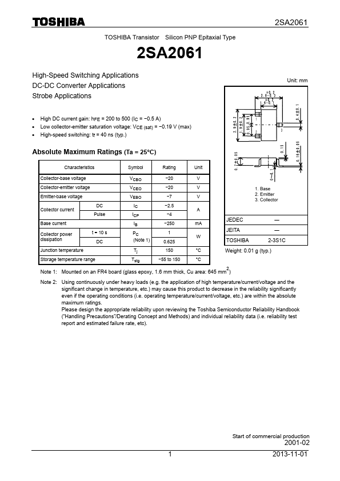

Datasheet preview – 2SA2061

Datasheet Details

Part number 2SA2061
Manufacturer Toshiba Semiconductor
File Size 155.83 KB
Description Silicon PNP Transistor
Datasheet download datasheet 2SA2061 Datasheet
Additional preview pages of the 2SA2061 datasheet.

📁 Similar Datasheet

  • 2SA2060 - Silicon PNP Transistor (Toshiba)
  • 2SA2062 - PNP Transistor (Sanyo Semicon Device)
  • 2SA2062 - PNP Transistor (INCHANGE)
  • 2SA2063 - PNP Transistor (INCHANGE)
  • 2SA2064 - Silicon PNP Transistor (Panasonic Semiconductor)
  • 2SA2067 - Silicon PNP Transistor (Panasonic Semiconductor)
  • 2SA2002 - Silicon PNP Epitaxial Type Transistor (IDC)
  • 2SA2004 - Silicon PNP Transistor (Panasonic Semiconductor)
  • 2SA2004 - PNP Transistor (INCHANGE)
  • 2SA2005 - Transistors (Rohm)
Other Datasheets by Toshiba Semiconductor

Full PDF Text Transcription

Click to expand full text
TOSHIBA Transistor Silicon PNP Epitaxial Type 2SA2061 High-Speed Switching Applications DC-DC Converter Applications Strobe Applications 2SA2061 Unit: mm • High DC current gain: hFE = 200 to 500 (IC = −0.5 A) • Low collector-emitter saturation voltage: VCE (sat) = −0.19 V (max) • High-speed switching: tf = 40 ns (typ.) Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collector-base voltage VCBO −20 V Collector-emitter voltage VCEO −20 V Emitter-base voltage VEBO −7 V Collector current Base current Collector power dissipation DC Pulse t = 10 s DC IC −2.5 A ICP −4 IB −250 mA PC 1 W (Note 1) 0.625 JEDEC JEITA TOSHIBA ― ― 2-3S1C Junction temperature Tj 150 °C Weight: 0.01 g (typ.
