2SA2056 - Silicon PNP Transistor

2SA2056 Description

TOSHIBA Transistor Silicon PNP Epitaxial Type 2SA2056 High-Speed Switching Applications DC-DC Converter Applications Strobe Applications * Hig.

2SA2056 Applications

* DC-DC Converter Applications Strobe Applications
* High DC current gain: hFE = 200 to 500 (IC =
* 0.5 A)
* Low collector-emitter saturation voltage: VCE (sat) =
* 0.2 V (max)
* High-speed switching: tf = 90 ns (typ. ) 2SA2056 Unit: mm Maximum Ratings (Ta = 25°C

📥 Download Datasheet

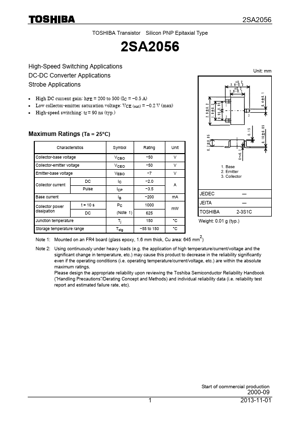

Preview of 2SA2056 PDF
datasheet Preview Page 2 datasheet Preview Page 3
