2SA2075 - Silicon PNP epitaxial planar type Power Transistors

2SA2075 Description

Power Transistors 2SA2075 Silicon PNP epitaxial planar type Power supply for Audio & Visual equipments such as TVs and VCRs Industrial equipments such.

2SA2075 Features

* High-speed switching (tstg: storage time/tf: fall time is short)
* Low collector-emitter saturation voltage VCE(sat)
* Superior forward current transfer ratio hFE linearity
* Allowing supply with the radial taping (MT-4)
* Absolute Maximum Ratings TC = 25°C Pa

📥 Download Datasheet

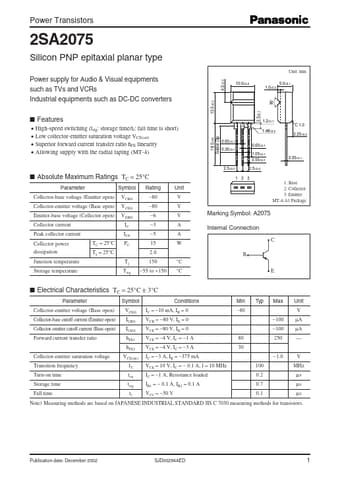

Preview of 2SA2075 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SA2075
Manufacturer
Panasonic
File Size
58.87 KB
Datasheet
2SA2075-Panasonic.pdf
Description
Silicon PNP epitaxial planar type Power Transistors
