2SA765 Datasheet, Transistor, Inchange Semiconductor

PDF File Details

Part number:

2SA765

Manufacturer:

Inchange Semiconductor

File Size:

207.97kb

Download:

📄 Datasheet

Description:

Power transistor.

  • Collector-Emitter Breakdown Voltage- : V(BR)CEO= -80V(Min)
  • Low Collector Saturation Voltage- : VCE(sat)= 1.5V(Max.)

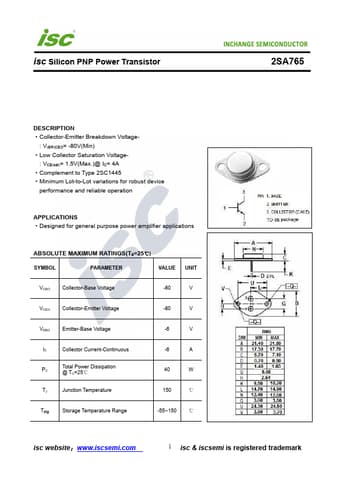

  • Datasheet Preview: 2SA765 📥 Download PDF (207.97kb)
    Page 2 of 2SA765

    2SA765 Application

    • Applications
    • Designed for general purpose power amplifier applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VC
