2SC3371 - Power Transistor

2SC3371 Description

isc Silicon NPN Power Transistor 2SC3371 .
Collector-Emiiter Sustaining Voltage- : VCEO(SUS)= 500V(Min. Low Collector Saturation Voltage : VCE(sat)= 1.

2SC3371 Applications

* Designed for power switching applications. ABSOLUTE MAXIMUM RATINGS (Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 800 V VCEO Collector-Emitter Voltage 500 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Continuous 15 A ICM Collector Current-Peak 3

📥 Download Datasheet

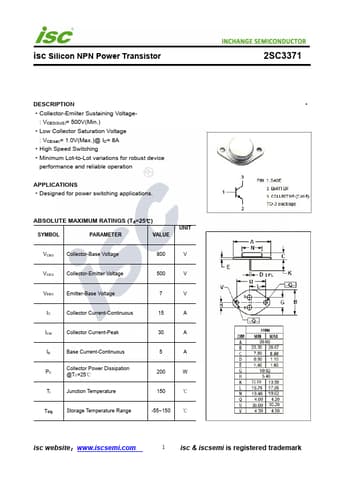

Preview of 2SC3371 PDF
datasheet Preview Page 2
